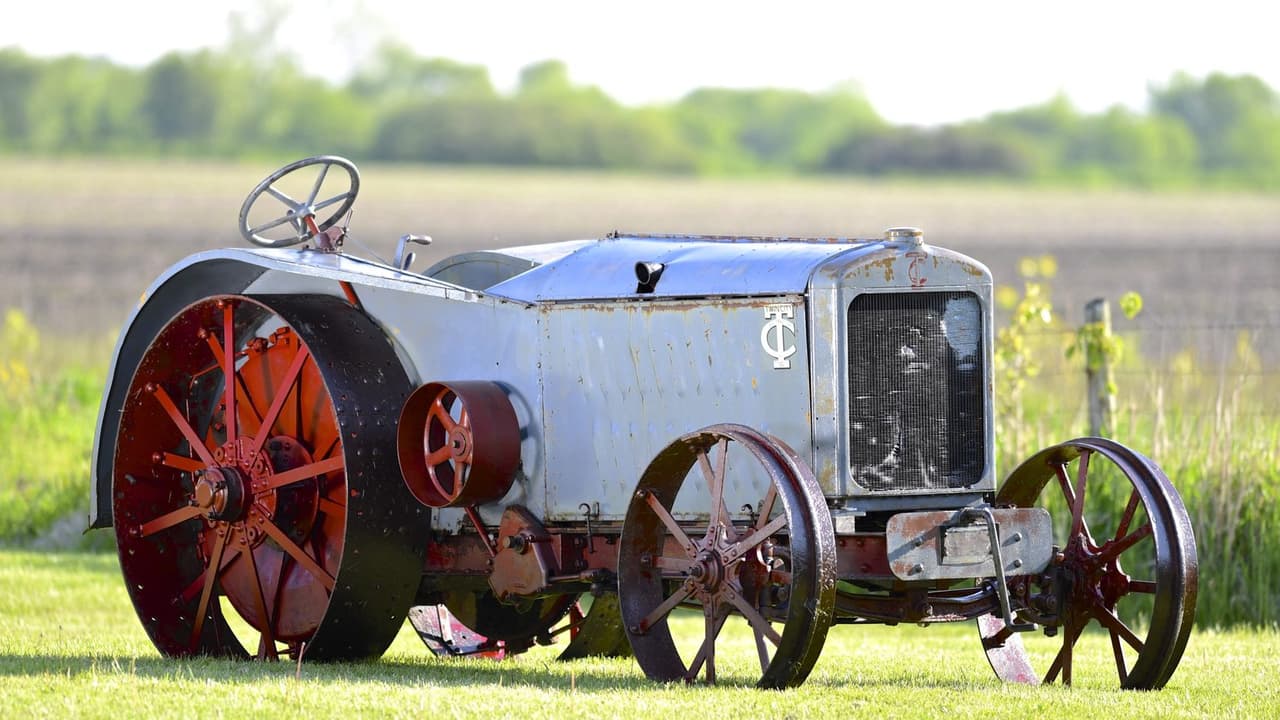

Twin City 16-30

Last Updated: June 2024

Overview

The Twin City 16-30 is a standard-tread tractor known for its simple yet robust design. This model is built with a 4x2 2WD chassis, consisting of a manual steering system alongside a single-speed gear transmission, reflective of its era where simplicity and durability were paramount. As hinted by its model number, the 16-30 was engineered to handle a variety of agricultural tasks with ease. The heart of the Twin City 16-30 lies in its 4-cylinder, 589 ci liquid-cooled vertical engine that operates on kerosene, which was more common in tractors of its time. The ample bore and stroke of 5.00 and 7.50 inches indicate a motor designed for considerable torque output. Its dimensions, with a length of 179 inches, a width of 70 inches, and a height of 72 inches, coupled with a weight of 7800 lbs, demonstrate the heft and presence of this machine in the field. Completed with steel rear tires measuring 54 inches in diameter and 12 inches in width, the 16-30 was built to last and perform under strenuous work conditions.
Show more...

Key Specifications

Category: Utility, Standard Tread

Transmission: Gear

Drive Type: 2WD

Operating Weight: 7800

Fuel Type: Kerosene

Twin City 16-30 vs. Similar Tractors

Operating Weight
Average
Greater than 56% of similar tractors.

Technical Specifications

Engine

Manufacturer
Twin City
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
Valve-in-head
Fuel Type
Kerosene
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
589
Bore (in)
5
Stroke (in)
7.5
Rated RPM
-
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
1
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
179
Width (in)
70
Height (in)
72
Operating Weight (lb)
7800

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
54
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
