Turner-Simplicity Unknown

Last Updated: June 2024

Overview

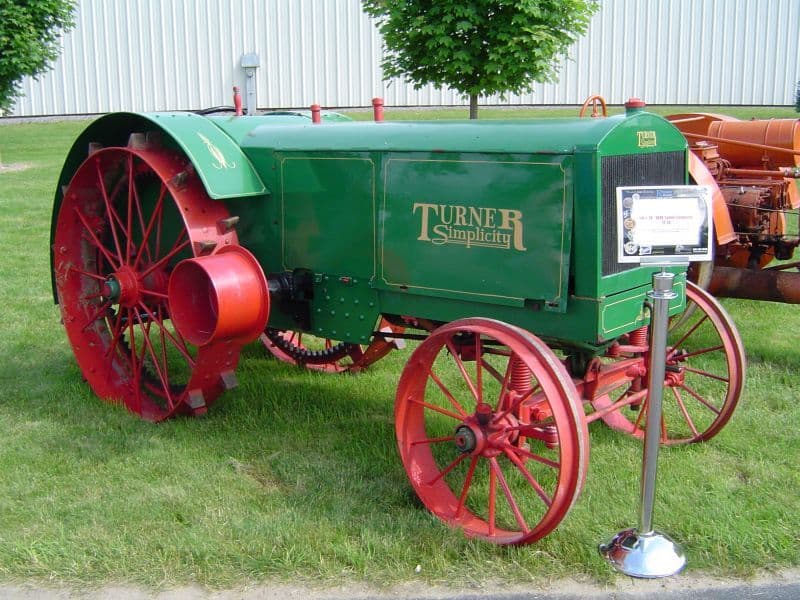

The Turner-Simplicity tractor is a machine running on a 4-cylinder Waukesha engine that uses kerosene for fuel. This engine is liquid-cooled and has a displacement of 232 cubic inches. The engine’s bore and stroke measure 3.75 inches by 5.25 inches respectively, running at a rated 1000 RPM. Very little information is available about the tractor's modern technology features, operator comfort, ease of maintenance, or safety systems. Its gear transmission provides two forward gears and one reverse gear. The tractor's large steel wheels with front tire dimensions of 6x30 inches and rear dimensions of 54x10 inches help navigate demanding agricultural environments, supported by a sturdy wheelbase of 80 inches. The tractor's considerable dimensions and shipping weight imply its suitability for a variety of tasks that require a durable and reliable machine. It maintains a classic aesthetic with a length of 128 inches, a width of 68 inches, and a height of 60 inches.
Show more...

Key Specifications

Transmission: Gear

Operating Weight: 4000

Fuel Type: Kerosene

Technical Specifications

Engine

Manufacturer
Waukesha
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Kerosene
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
232
Bore (in)
3.75
Stroke (in)
5.25
Rated RPM
1000
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
2
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
128
Width (in)
68
Height (in)
60
Operating Weight (lb)
4000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
30
Front Tire Width (in)
6
Rear Tire Diameter (in)
54
Rear Tire Width (in)
10
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Manual
Brake Type
-
Hydraulic System Type
-
