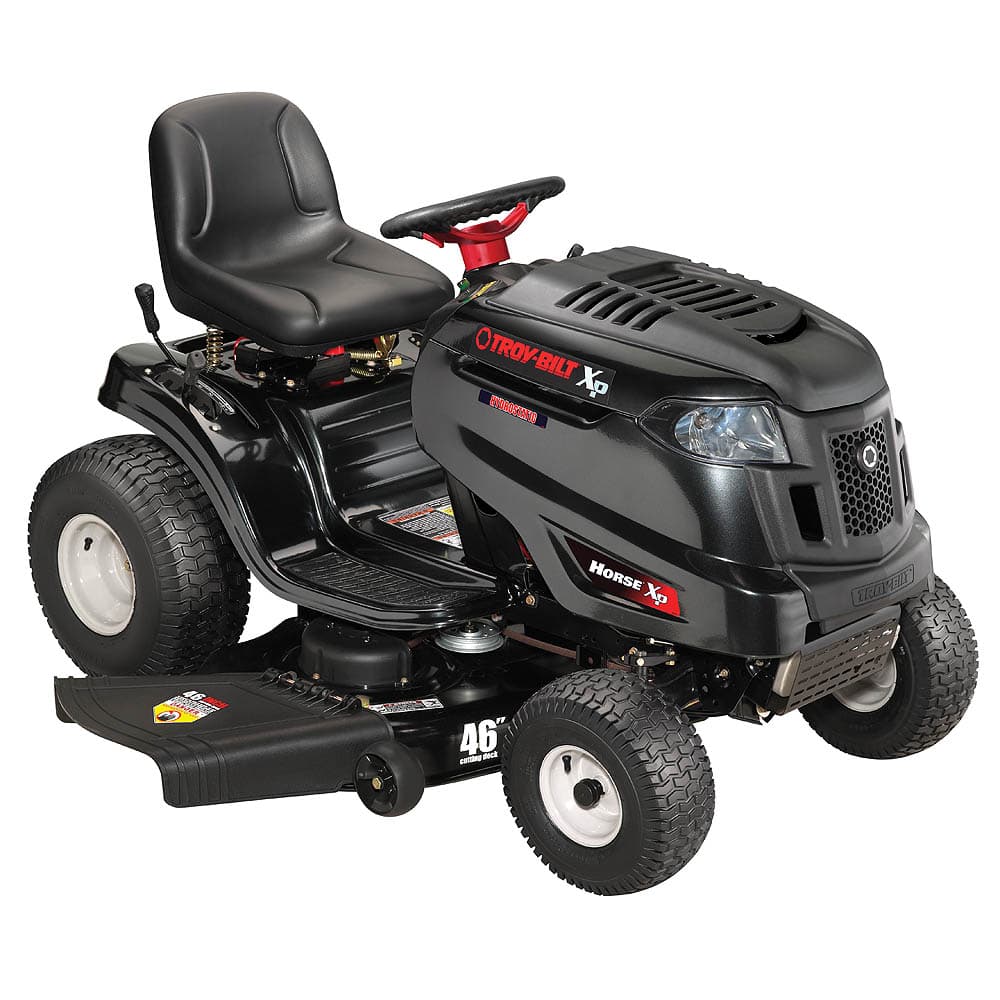

Troy-Bilt Horse XP

Last Updated: June 2024

Overview

The Troy-Bilt Horse XP is a lawn tractor that is designed primarily for residential lawn care. It is a capable model powered by a 20 HP Kohler SV601 air-cooled gasoline engine, which provides reliability and sufficient power for mowing large areas. The tractor features a comfortable open operator station, manual steering, and a belt-driven hydrostatic transmission allowing infinite control over speed with infinite gears both in forward and reverse. This model was produced between the years 2014 to 2015 and has a chassis configuration of 4x2, meaning it is a two-wheel-drive tractor. It is fitted with lawn/turf tires measuring 15x6x6 inches in the front and 20x8x8 inches in the rear, ensuring a gentle touch on garden and lawn surfaces. The Troy-Bilt Horse XP offers a convenient electric start and is built for ease of use and maintenance, making it a practical choice for homeowners looking to keep their lawns in top condition without the complexities of larger agricultural tractors.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 20

Transmission: Belt-driven hydrostatic

Drive Type: 2WD

Operating Weight: 529

Fuel Type: Gasoline

Troy-Bilt Horse XP vs. Similar Tractors

Power Output
Average
Greater than 69% of similar tractors.
Operating Weight
Average
Greater than 33% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kohler
Model
SV601
Cooling Type
Air-cooled
Cylinder Orientation
Horizontal
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
1
Displacement (ci)
36.4
Bore (in)
3.7
Stroke (in)
3.39
Rated RPM
3600
Power Output (hp)
20

Transmission

Type
Belt-driven hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
70.5
Width (in)
51.6
Height (in)
35.4
Operating Weight (lb)
529

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
15
Front Tire Width (in)
6
Rear Tire Diameter (in)
20
Rear Tire Width (in)
8
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf
Manufacture - End Year
2015
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
