Toro LX420

Last Updated: June 2024

Overview

The Toro LX420 is a 2WD lawn tractor from the LX series, produced from 2006 to 2007. It features a Kohler Courage SV540 single-cylinder engine with a displacement of 32.6 cubic inches, air-cooled and naturally aspirated, developing 18 horsepower at 3,600 rpm and 32.1 ft-lb of torque at 2,200 rpm. The tractor is fitted with a mechanical CVT transmission, allowing for infinite forward and reverse speeds, complemented by manual steering and dry disc brakes. It has an open operator station for accessibility and is designed primarily for lawn mowing tasks, with a fuel tank capacity of 3 US gallons. The tires are lawn/turf type, with 15-inch diameter at the front and 20-inch diameter at the rear, contributing to its stable performance on grassy surfaces.

Key Specifications

Category: Lawn and Garden

Power Output: 18

Transmission: Mechanical CVT

Drive Type: 2WD

Operating Weight: 498

Fuel Type: Gasoline

Image Gallery

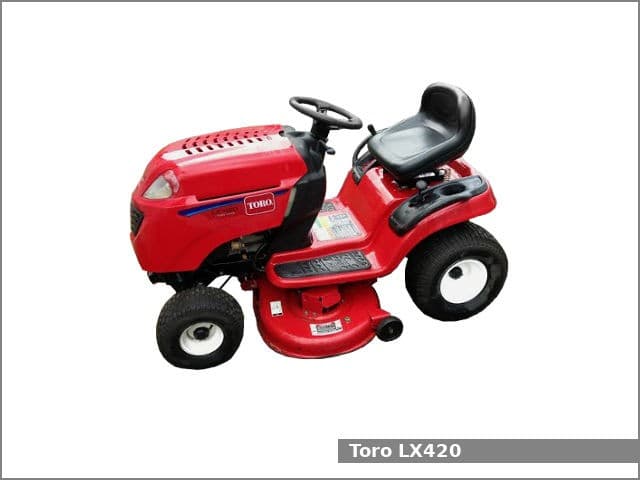

Toro LX420 Tractor

Toro LX420 vs. Similar Tractors

Power Output

Average

Greater than 55% of similar tractors.

Operating Weight

Below Average

Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Courage SV540
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 1
Displacement (ci): 32.6
Bore (in): 3.5
Stroke (in): 3.39
Rated RPM: 3600
Power Output (hp): 18

Transmission

Type: Mechanical CVT
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 68.1
Width (in): 45.1
Height (in): 42.9
Operating Weight (lb): 498

Power Take-Off (PTO)

PTO Type: Independent with manual clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 6
Rear Tire Diameter (in): 20
Rear Tire Width (in): 8
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 2007
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Dry disc
Hydraulic System Type: -
