Toro 950

Last Updated: June 2024

Overview

The Toro 950 is a 2WD lawn tractor from the Suburban series, which was manufactured by Toro from 1969 to 1971. This model is powered by a small but capable 0.4 L, single-cylinder Kohler K241AS gasoline engine. It delivers 10 HP and is paired with a simple belt-driven gear transmission system consisting of 4 forward gears and 1 reverse gear, suitable for a variety of lawn and garden tasks. The Toro 950 sports a minimalistic design with manual steering and mechanical band brakes, making it a straightforward and user-friendly option for lawn care. Fuel needs are covered by a 7.6-liter tank, keeping this lawn tractor running through tasks without frequent refueling. It supports an open operator station design, ensuring easy access and maneuverability.

Key Specifications

Category: Lawn and Garden

Power Output: 10

Transmission: Belt-driven gear with mechanical idler pulley

Drive Type: 2WD

Operating Weight: 540

Fuel Type: Gasoline

Image Gallery

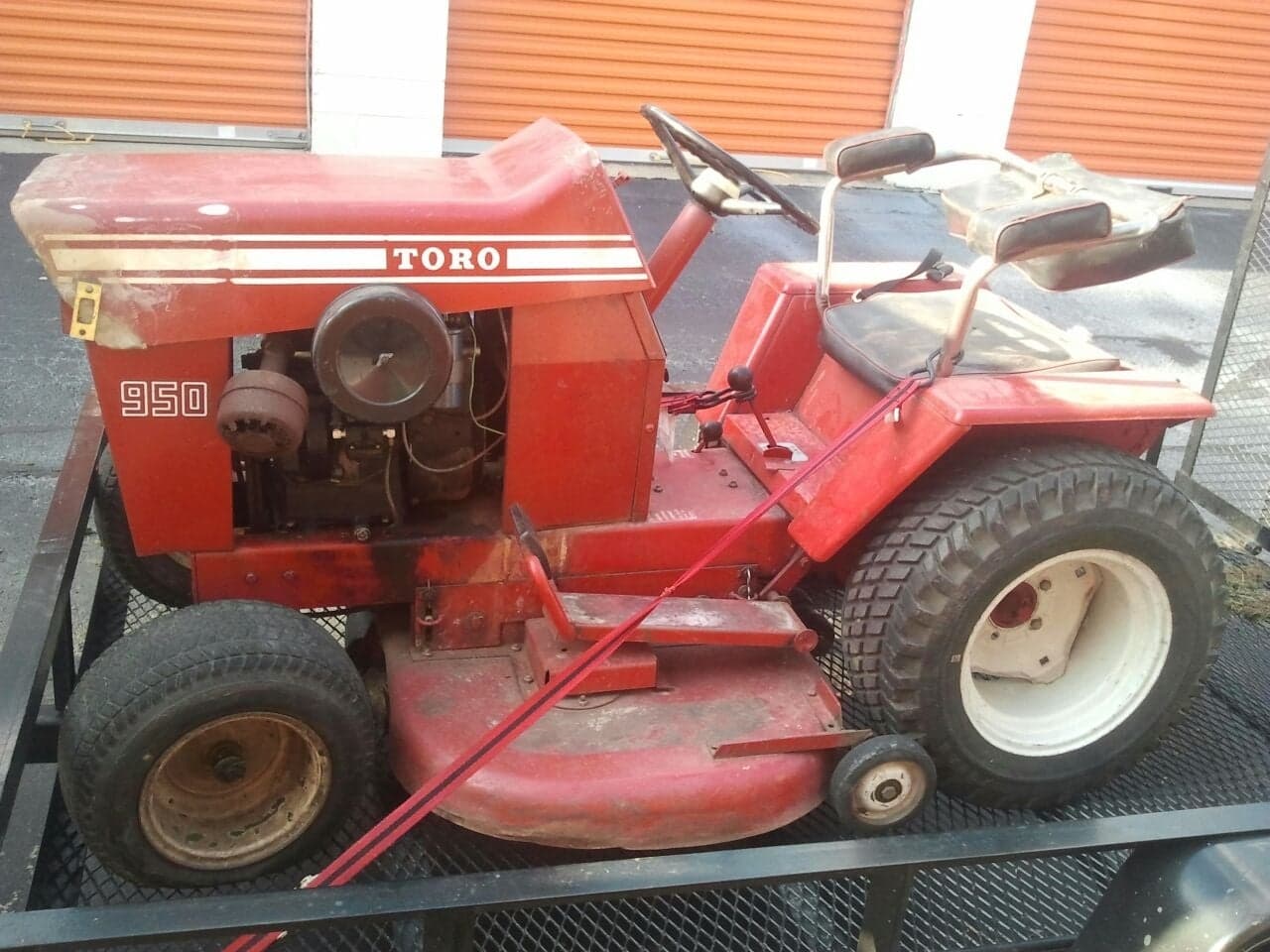

Toro 950 Tractor

Toro 950 vs. Similar Tractors

Power Output

Poor

Greater than 10% of similar tractors.

Operating Weight

Average

Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: K241AS
Cooling Type: Air-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural aspirated
Cylinders: 1
Displacement (ci): 23.8
Bore (in): 3.27
Stroke (in): 2.87
Rated RPM: -
Power Output (hp): 10

Transmission

Type: Belt-driven gear with mechanical idler pulley
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 67.3
Width (in): 35.8
Height (in): 37.8
Operating Weight (lb): 540

Power Take-Off (PTO)

PTO Type: Independent with manual clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1971
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Mechanical band
Hydraulic System Type: -
