TAFE Gajraj 5900

Last Updated: June 2024

Overview

The TAFE Gajraj 5900 is a utility tractor characterized by its 4x2 2WD (two-wheel drive) chassis and manual 8-speed transmission with 8 forward and 2 reverse gears. It is equipped with a TAFE-manufactured S433 diesel engine that delivers 60 horsepower and has a displacement of 203.4 cubic inches. The engine is liquid-cooled, operates at a rated RPM of 2300, and supports an oil capacity of 8.98 quarts. The Gajraj 5900 has a wheelbase of 80.71 inches and an operating weight of 4,927 pounds, signaling a robust and stable platform for a variety of tasks. It has large agricultural tires with a rear tire size of 16.9-28 and a front tire size of 7.50-16, complementing its general utility in farm operations. The design also incorporates a three-point hitch at the rear, suited for attaching a wide range of implements.

Key Specifications

Category: Utility

Power Output: 60

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4,927

Fuel Type: Diesel

Image Gallery

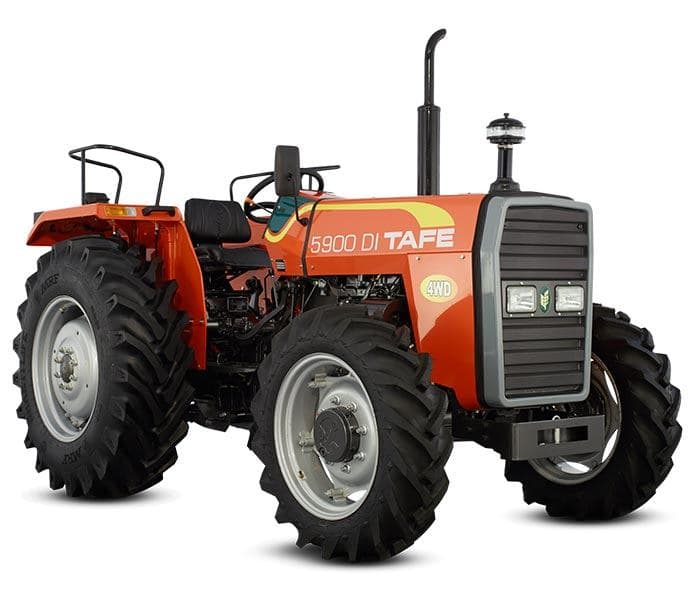

TAFE Gajraj 5900 Tractor

TAFE Gajraj 5900 vs. Similar Tractors

Power Output

Average

Greater than 58% of similar tractors.

Operating Weight

Poor

Greater than 2% of similar tractors.

Technical Specifications

Engine

Manufacturer: TAFE
Model: S433
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 203.4
Bore (in): 3.598
Stroke (in): 5
Rated RPM: 2300
Power Output (hp): 60

Transmission

Type: Manual
Forward Gears: 8
Reverse Gears: 2
Total Gears: 10

Dimensions

Length (in): 141.3
Width (in): 78.74
Height (in): 96.46
Operating Weight (lb): 4,927

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (Implied by Rear Type: II)
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
