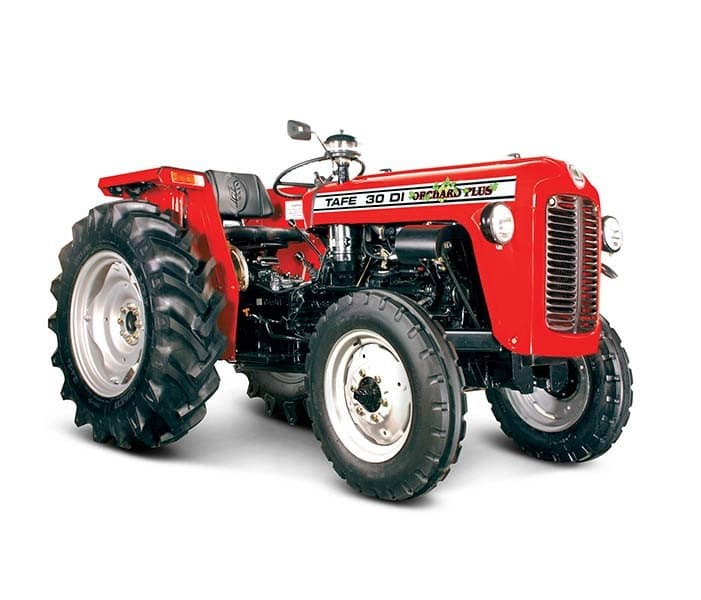

TAFE 30

Last Updated: June 2024

Overview

The TAFE 30 is a modestly sized tractor built by TAFE (Tractors and Farm Equipment Limited), likely targeted at small to medium-sized farms. With a 31 horsepower engine at 23.1 kW and a displacement of 138.5 cubic inches (2.3 liters), it delivers a convenient blend of power and economy for various agricultural tasks. The tractor operates with a sliding gear transmission, featuring 6 forward gears and 2 reverse gears, which should provide a suitable range of speed options for different field operations. A diesel-powered, 3-cylinder, liquid-cooled vertical inline engine drives the TAFE 30. The liquid-cooling system has a capacity of 7.8 quarts, ensuring the engine remains at a proper operating temperature during prolonged use. While the tractor maintains a wheelbase of 72.05 inches and overall dimensions of 118.5 inches in length, 64.96 inches in width, and 86.61 inches in height, its operating weight is 3,439 pounds, indicative of a solid and stable workhorse. The absence of certain specifications, such as the hitch lift capacity or tire dimensions, suggests that potential owners may need to refer to a manual or contact the manufacturer directly for that information.
Show more...

Key Specifications

Power Output: 31

Transmission: Sliding Gear

Operating Weight: 3,439

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Unknown
Model
S318.1
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
138.5
Bore (in)
-
Stroke (in)
-
Rated RPM
1200
Power Output (hp)
31

Transmission

Type
Sliding Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
118.5
Width (in)
64.96
Height (in)
86.61
Operating Weight (lb)
3,439

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
7.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
