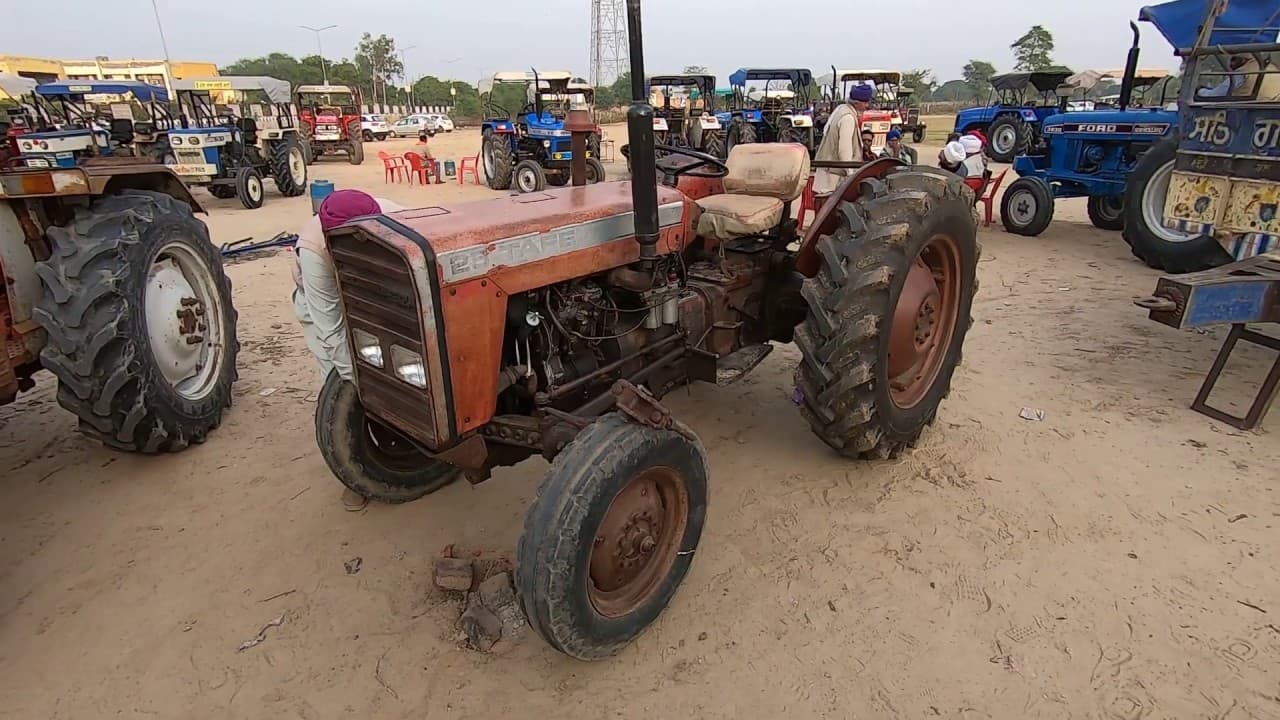

TAFE 25

Last Updated: June 2024

Overview

The TAFE 25 tractor is a utility model that is powered by a 24 horsepower, 2-cylinder, diesel engine, which provides enough power for various farming tasks. It features a liquid cooling system to maintain engine temperature and has a rated RPM of 2000. With a displacement of 101.9 cubic inches, it is capable of performing a range of tasks expected of a tractor in its class. The transmission is a sliding gear type, with 6 forward gears and 2 reverse, facilitating a variety of speeds and torques for different operational needs. While the exact year of manufacture start and end is not provided, the durable build of the TAFE 25 is constructed to meet agricultural duties with a reported weight of 3,086 pounds. The physical dimensions include a length of 120.5 inches, a width of nearly 65 inches, and a height of approximately 87 inches, indicating a relatively compact tractor that can maneuver in various farm conditions including those requiring significant ground clearance, which is specified as 12.6 inches. While further specification data on aspects such as wheel configuration, PTO speeds, and hitch lift capacity are not provided, the TAFE 25 is assumed to have capabilities that match tractors within its power category.
Show more...

Key Specifications

Power Output: 24

Transmission: sliding gear

Operating Weight: 3086

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
vertical inline
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
2
Displacement (ci)
101.9
Bore (in)
-
Stroke (in)
-
Rated RPM
2000
Power Output (hp)
24

Transmission

Type
sliding gear
Forward Gears
6
Reverse Gears
2
Total Gears
8

Dimensions

Length (in)
120.5
Width (in)
64.96
Height (in)
86.61
Operating Weight (lb)
3086

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
8.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
