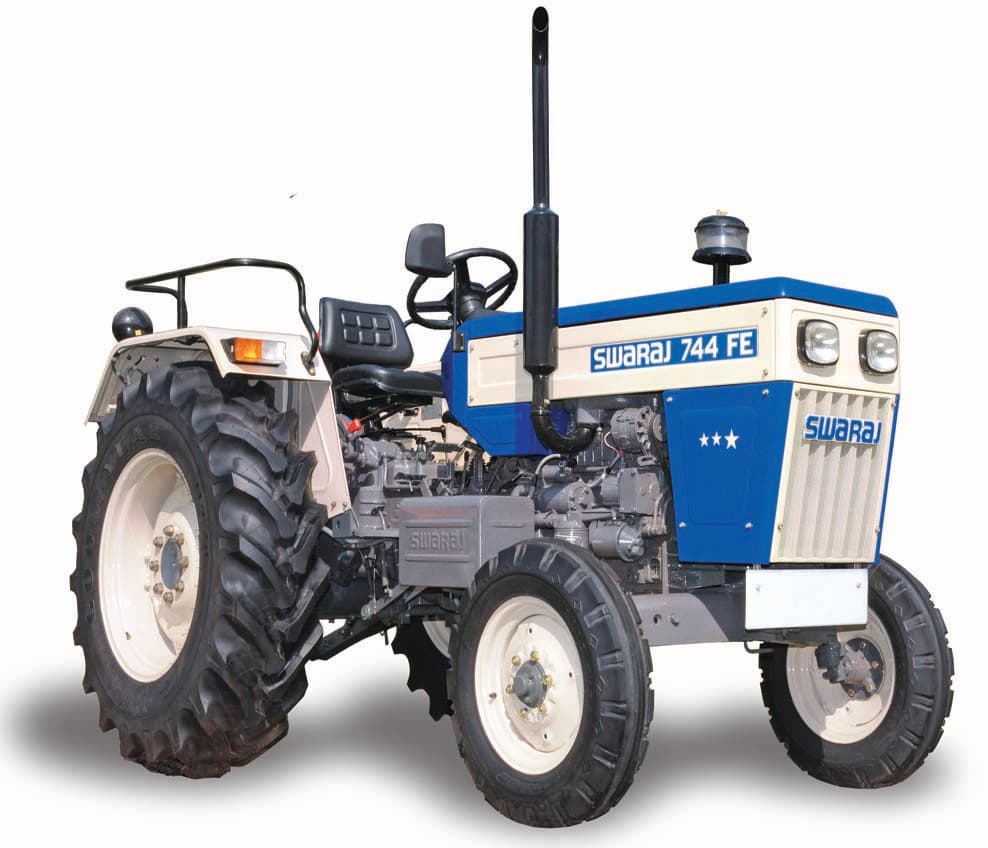

Swaraj 744FE

Last Updated: September 2024

Overview

The Swaraj 744FE is a powerful and versatile tractor designed for farmers who need a reliable workhorse. This model features a 3-cylinder, liquid-cooled diesel engine made by Swaraj. The engine, known as the RB-30 TR, produces 48 hp at 2000 rpm, making it suitable for a wide range of farming tasks. With a displacement of 191.4 ci and a bore and stroke of 4.331 inches each, this engine offers a good balance of power and efficiency.

The 744FE comes with an 8-speed transmission, offering 8 forward gears and 2 reverse gears. This gives farmers plenty of options for different field conditions and tasks. The tractor is equipped with agricultural tires both front and rear, providing good traction in various soil types. It measures 135.4 inches long, 68.11 inches wide, and 85.43 inches tall, with an operating weight of 4255 lb. The Swaraj 744FE also features a rear-mounted three-point hitch (category II) for attaching various implements. Additional features include an electric starter, a cyclonic pre-cleaner air filter system, and a 12-volt electrical system, all of which contribute to the tractor's reliability and ease of use.
Show more...

Key Specifications

Power Output: 48 hp (35.8 kW)

Transmission: 8-speed

Operating Weight: 4255 lb (1930 kg)

Fuel Type: Diesel

Swaraj 744FE vs. Similar Tractors

Power Output

The Power Output for the Swaraj 744FE is Average. It is greater than 39% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 1.9K+ tractors in our database)

Operating Weight

The Operating Weight for the Swaraj 744FE is Average. It is greater than 35% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 1.9K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Swaraj 744FE is Average. It is greater than 46% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Swaraj 744FE is Below Average. It is greater than 12% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Swaraj
Model
RB-30 TR
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
3
Displacement
191 ci (3.1 L)
Bore
4.33 in (110.0 mm)
Stroke
4.33 in (110.0 mm)
Rated RPM
2000
Power Output
48 hp (35.8 kW)

Transmission

Type
8-speed
Forward Gears
8
Reverse Gears
2
