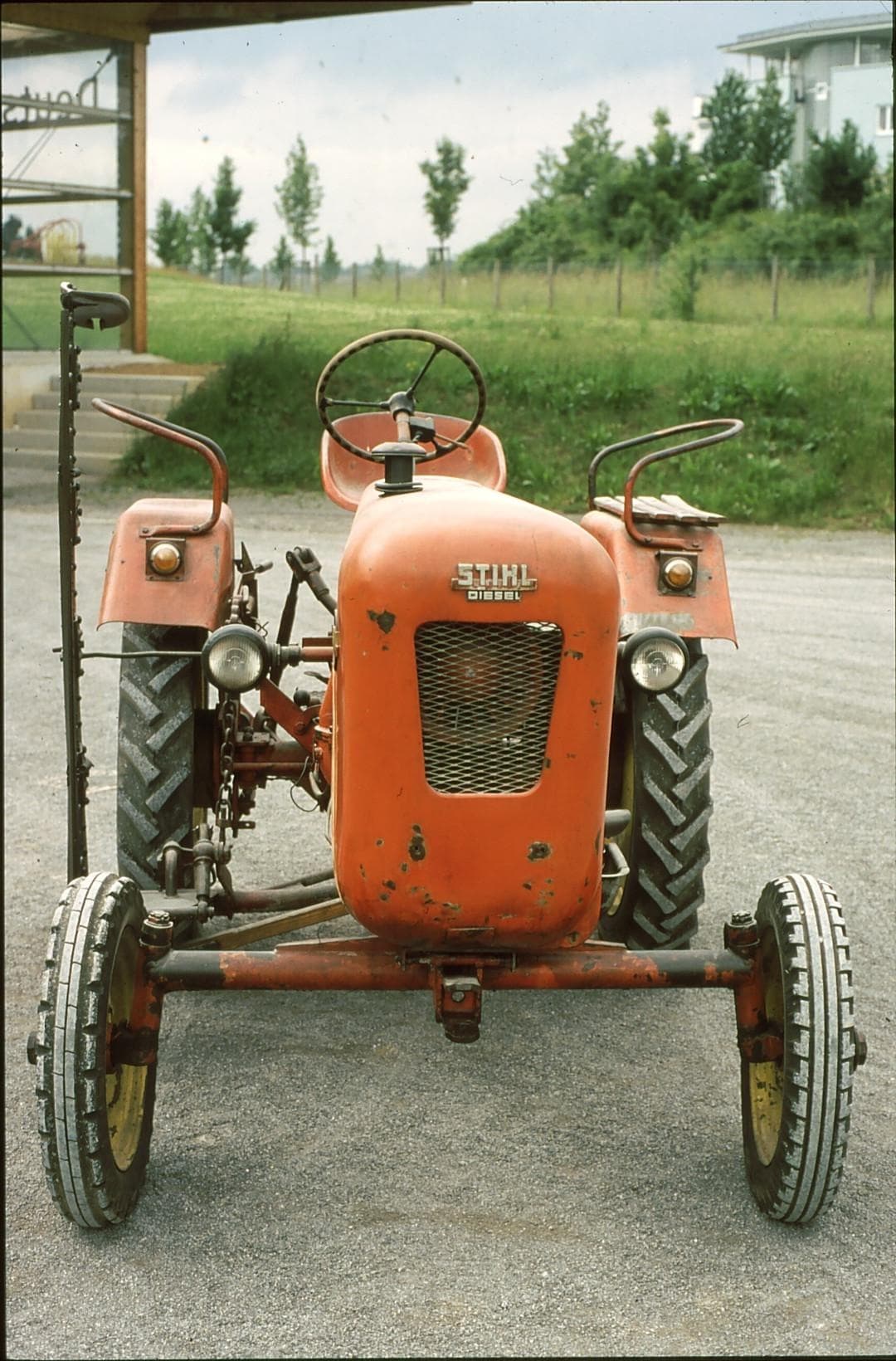

Stihl 381

Last Updated: June 2024

Overview

The Stihl 381 is a diesel-powered tractor, equipped with a single-cylinder, air-cooled engine manufactured by Stihl itself. This engine is capable of delivering a power output of 14 horsepower and runs at a rated RPM of 2000. It possesses an unsynchronized gear transmission manufactured by Hurth, providing four forward gears and one reverse gear, configured within a 4x2 two-wheel drive chassis. The tractor has standard agricultural tires with the front tires measuring 4.50 inches in width and 16 inches in diameter, and rear tires measuring 7 inches in width and 30 inches in diameter. The operating weight of the tractor is 1,797 pounds, which reflects its built and capabilities. Without details on dimensions, it's impossible to ascertain the actual size and operating space required for the Stihl 381. As for the starting system, it operates on a 12-volt starter. Due to the limited data provided, information such as the exact dimensions of the engine, the power take-off speed, hitch lift capacity, brakes, hydraulic system and additional features such as safety elements and comfort of the operator station are not available.
Show more...

Key Specifications

Power Output: 14

Transmission: Unsynchronized Gear

Drive Type: 2WD

Operating Weight: 1797

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Stihl
Model
131
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
1
Displacement (ci)
46.56
Bore (in)
-
Stroke (in)
-
Rated RPM
2000
Power Output (hp)
14

Transmission

Type
Unsynchronized Gear
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
1797

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
4.5
Rear Tire Diameter (in)
30
Rear Tire Width (in)
7
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 Volt
Brake Type
-
Hydraulic System Type
-
