Steyr M 963

Last Updated: September 2024

Overview

The Steyr M 963 is a compact and versatile 2WD tractor designed for various farming tasks. It features a 4x2 chassis and hydrostatic power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a synchro transmission that offers 16 forward and 8 reverse gears, giving farmers plenty of options for different jobs.

Under the hood, the M 963 boasts a Perkins 903.27T diesel engine. This turbo-charged 3-cylinder engine has a displacement of 164.8 ci and delivers 63 hp at 2250 rpm. It also produces a strong torque of 176 lb-ft at 1400 rpm, providing ample power for tough field work. The tractor's compact size, measuring 140.6 inches in length and 93.7 inches in height, makes it suitable for working in smaller fields or orchards. With an operating weight of 5976 lb and a category III hitch, the Steyr M 963 can handle a wide range of implements and attachments.

Key Specifications

Power Output: 63 hp (47.0 kW)

Transmission: Synchro

Drive Type: 2WD

Operating Weight: 5976 lb (2711 kg)

Fuel Type: Diesel

Image Gallery

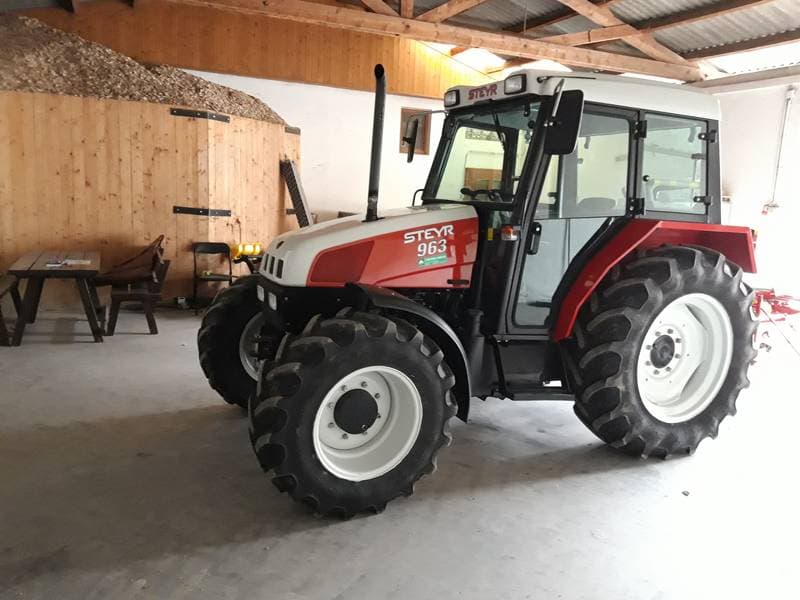

Steyr M 963 Tractor

Steyr M 963 vs. Similar Tractors

Power Output

The Power Output for the Steyr M 963 is Average. It is greater than 51% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Steyr M 963 is Average. It is greater than 51% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Steyr M 963 is Average. It is greater than 40% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Steyr M 963 is Average. It is greater than 46% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors
