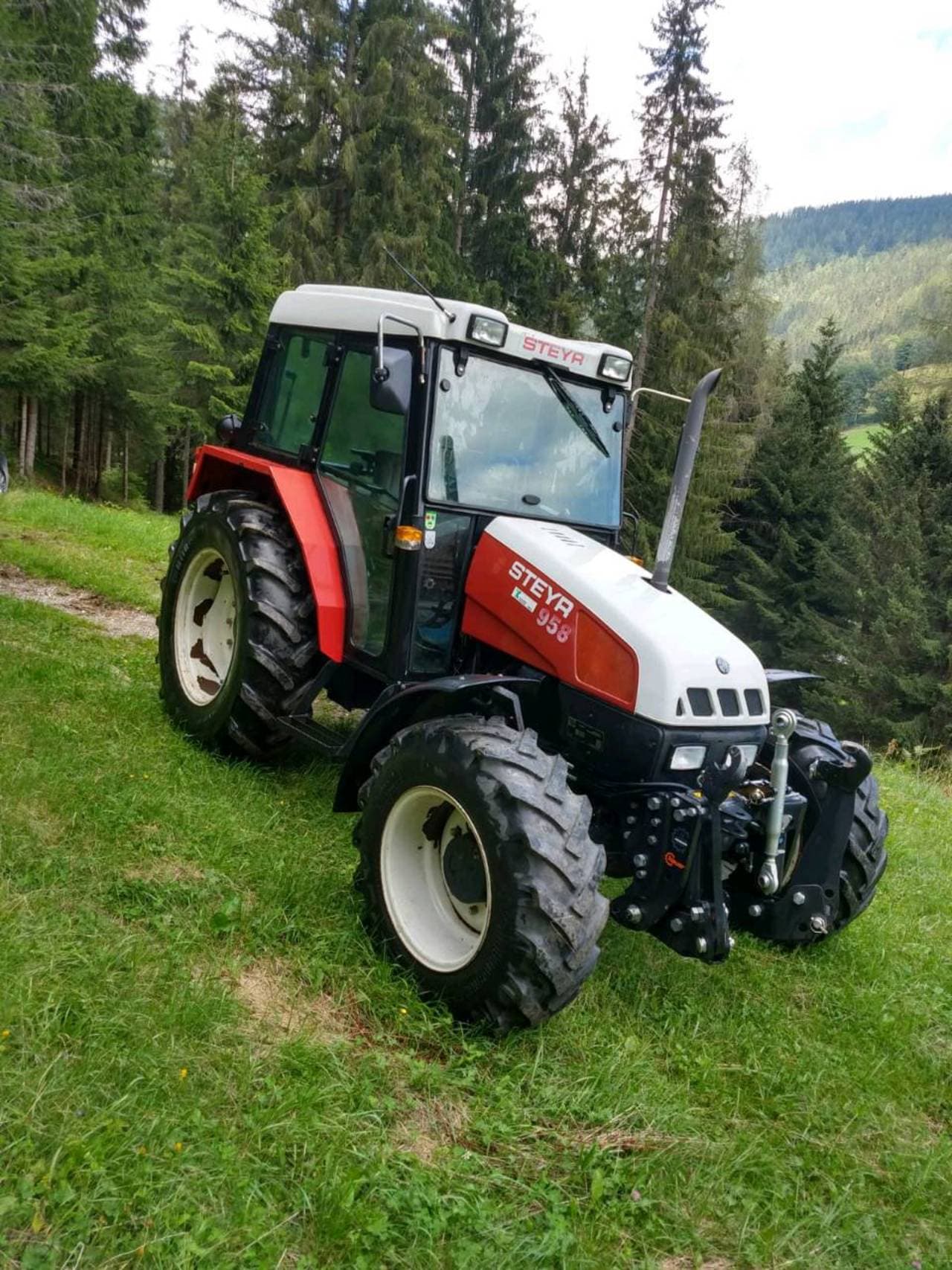

Steyr M 958

Last Updated: June 2024

Overview

The Steyr M 958 is a tractor designed primarily for agricultural purposes. It has a 4x2 chassis configuration and two-wheel drive. Equipped with a hydrostatic power steering system, it provides ease of maneuverability. The engine, a Perkins 903.27T model, is a turbocharged diesel with three cylinders and a displacement of 164.8 cubic inches. With 58 horsepower output and a maximum rated RPM of 2250, this tractor delivers adequate power for moderate farming tasks. The transmission is a 16-speed synchro type with 16 forward and 8 reverse gears, giving the operator flexibility to handle different working conditions. With a wheelbase of 83.5 inches, a length of 138.6 inches, and a height of 93.7 inches, the Steyr M 958 has a decent size to balance stability and functionality. Its operating weight of 6,064 lbs ensures it is hefty enough for good traction and pulling ability. This model comes with standard agricultural tires, and the specified front and rear tire sizes provide a good foundation for a variety of terrains and tasks.
Show more...

Key Specifications

Power Output: 58

Transmission: Synchro

Drive Type: 2WD

Operating Weight: 6064

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
903.27T
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
164.8
Bore (in)
3.74
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
58

Transmission

Type
Synchro
Forward Gears
16
Reverse Gears
8
Total Gears
24

Dimensions

Length (in)
138.6
Width (in)
-
Height (in)
93.7
Operating Weight (lb)
6064

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
30
Rear Tire Width (in)
14.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
