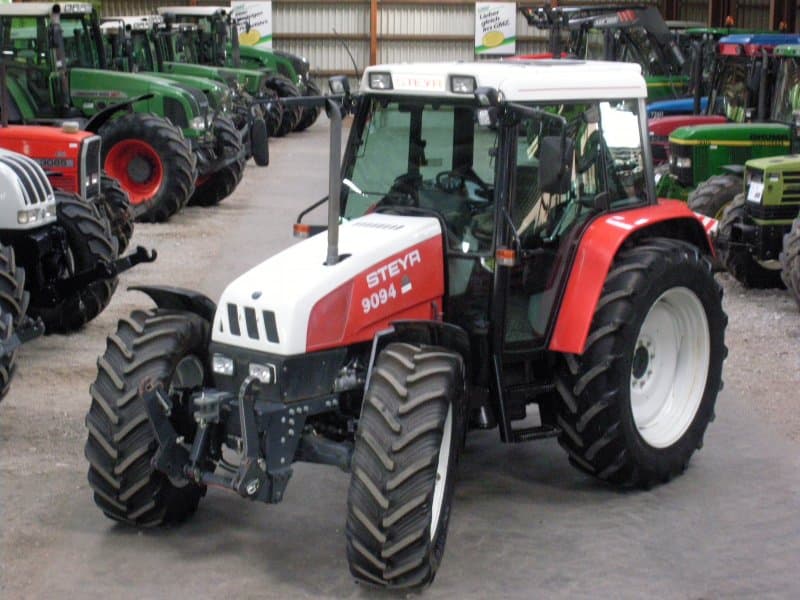

Steyr M 9094

Last Updated: June 2024

Overview

The Steyr M 9094 is a versatile tractor designed to meet various agricultural demands. With a 4-wheel drive chassis and a robust synchro transmission boasting 16 forward and 8 reverse gears, it is designed for efficient operation in a wide range of conditions. The tractor is powered by a 4-cylinder diesel engine, coming in two variations: an MWM 4.2L and a Sisu 4.4L engine, which differ slightly in their specifications. With an engine power output of 94 horsepower and peaking at 2300 RPM, it provides enough power to take on challenging tasks. Its hydraulic power steering system aids in handling, contributing to better maneuverability and precise control. Standing at 105.1 inches in height with a length of 165.7 inches, the M 9094 has a solid stance on the ground, supported by front and rear agriculture tires sized 14.9R24 and 16.9R38, respectively. The weight of 8,600 pounds underscores its heavy-duty build quality intended for rigorous farm work.
Show more...

Key Specifications

Power Output: 94

Transmission: Synchro

Drive Type: 4WD

Operating Weight: 8600

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM, Sisu
Model
MWM 4.2L 4-cyl diesel, Sisu 4.4L 4-cyl
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
268.3
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
94

Transmission

Type
Synchro
Forward Gears
16
Reverse Gears
8
Total Gears
24

Dimensions

Length (in)
165.7
Width (in)
-
Height (in)
105.1
Operating Weight (lb)
8600

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
