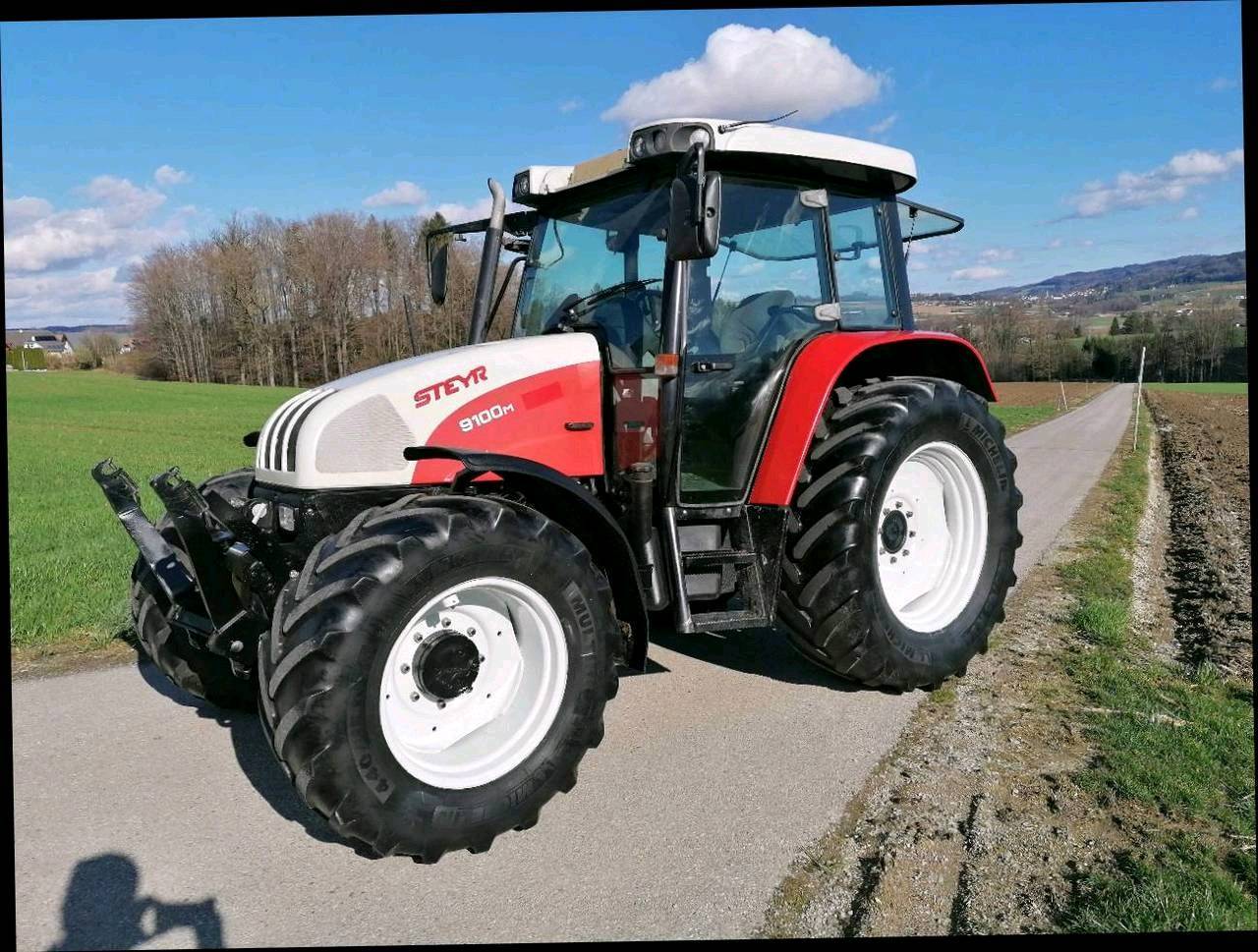

Steyr 9100M

Last Updated: September 2024

Overview

The Steyr 9100M is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by Sisu. This engine puts out 97 horsepower, which is very high for tractors in its class. The engine is turbocharged and liquid-cooled, helping it run smoothly in different conditions.

This tractor has a 4-wheel drive system, making it great for working in muddy or uneven fields. It uses a STEYR Power-2 transmission with 32 forward gears and 16 reverse gears. This gives the driver lots of options for different tasks. The 9100M is big and sturdy, weighing 8,708 pounds. It's about 14 feet long, 7 feet wide, and 9 feet tall. The tractor has large agricultural tires, with 24-inch front tires and 34-inch rear tires. These help it grip the ground well in various farm conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 97 hp (72.3 kW)

Transmission: STEYR Power-2

Drive Type: 4WD

Operating Weight: 8708 lb (3950 kg)

Fuel Type: Diesel

Steyr 9100M vs. Similar Tractors

Power Output

The Power Output for the Steyr 9100M is Above Average. It is greater than 82% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Steyr 9100M is Above Average. It is greater than 81% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Steyr 9100M is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Steyr 9100M is Average. It is greater than 42% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Sisu
Model
44DT
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
268 ci (4.4 L)
Bore
4.25 in (107.9 mm)
Stroke
4.72 in (119.9 mm)
Rated RPM
2300
Power Output
97 hp (72.3 kW)

Transmission

Type
STEYR Power-2
Forward Gears
32
Reverse Gears
16
Total Gears
48

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
