Steyr 8090

Last Updated: June 2024

Overview

The Steyr 8090 is a utility tractor with a hydrostatic power steering and a 4x2 chassis, making it primarily a two-wheel-drive machine. It boasts a robust Steyr WD 411.88 turbocharged diesel engine with 4 cylinders and a displacement of 210.9 cubic inches. With an engine producing 80 horsepower and a rated RPM of 2200, this model is well equipped for a variety of farm tasks. The tractor is fitted with a synchronized partial power shift transmission and a wide range of gear options, including a total of 32 gears. The 8090 also has a spacious cab measuring 100 inches in height and operates within a weight range of 6945 to 7650 pounds, capable of handling a lift capacity of 11,020 pounds on its Category 3 hitch system.

Key Specifications

Category: Utility

Power Output: 80

Transmission: Synchronized partial power shift

Drive Type: 2WD

Operating Weight: 6945 to 7650

Fuel Type: Diesel

Image Gallery

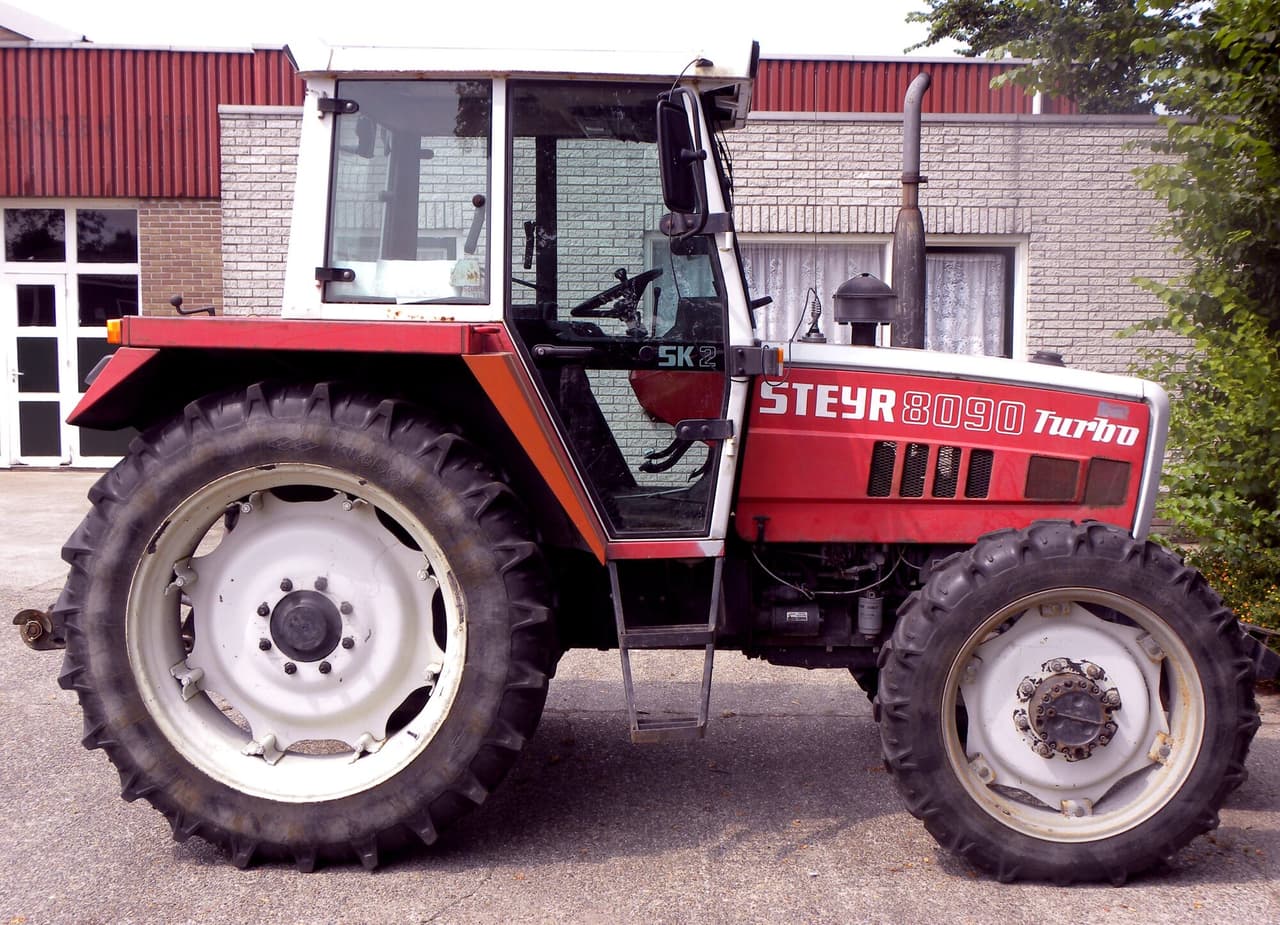

Steyr 8090 Tractor

Steyr 8090 vs. Similar Tractors

Power Output

Above Average

Greater than 71% of similar tractors.

Hitch Capacity

Below Average

Greater than 13% of similar tractors.

Operating Weight

Excellent

Greater than 91% of similar tractors.

Technical Specifications

Engine

Manufacturer: Steyr
Model: WD 411.88
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 210.9
Bore (in): 3.94
Stroke (in): 4.33
Rated RPM: 2200
Power Output (hp): 80

Transmission

Type: Synchronized partial power shift
Forward Gears: -
Reverse Gears: -
Total Gears: 32

Dimensions

Length (in): 148.5
Width (in): 77.7
Height (in): 100 (Cab Height)
Operating Weight (lb): 6945 to 7650

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 34
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: II/I
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): 11,020
Operator Station Type: Cab
Starter Type: -
Brake Type: -
Hydraulic System Type: -
