Steyr 8080

Last Updated: September 2024

Overview

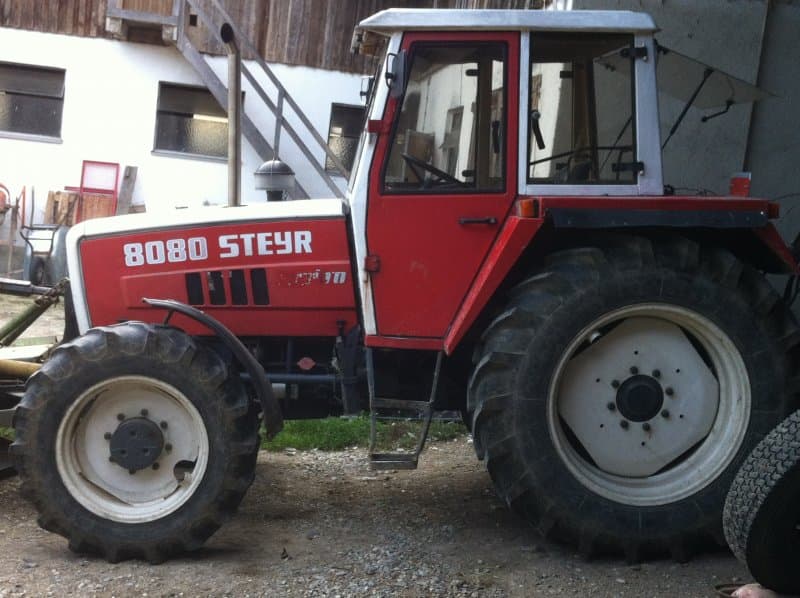

The Steyr 8080 is a utility tractor built for everyday farm work. It has a 2WD drive system and a 4x2 chassis, making it good for flat fields. The tractor uses a synchro transmission with 16 forward gears and 8 reverse gears, giving farmers lots of options for different tasks.

Under the hood, the Steyr 8080 has a turbocharged diesel engine made by Steyr. The engine has 4 cylinders and puts out 70 horsepower, which is above average for its class. It has a displacement of 210.9 cubic inches, which is also above average. The engine runs at 2400 RPM and produces 184 lb-ft of torque at 1600 RPM, giving it good pulling power. The tractor is 150 inches long and 99.6 inches tall, with a weight of 7122 pounds. It has agricultural tires, with larger rear tires for better traction in the fields.
Show more...

Key Specifications

Category: Utility

Power Output: 70 hp (52.2 kW)

Transmission: Synchro

Drive Type: 2WD

Operating Weight: 7122 lb (3230 kg)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Steyr
Model
WD 411.86
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
211 ci (3.5 L)
Bore
3.94 in (100.1 mm)
Stroke
4.33 in (110.0 mm)
Rated RPM
2400
Power Output
70 hp (52.2 kW)

Transmission

Type
Synchro
Forward Gears
16
Reverse Gears
8

Drivetrain

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power
