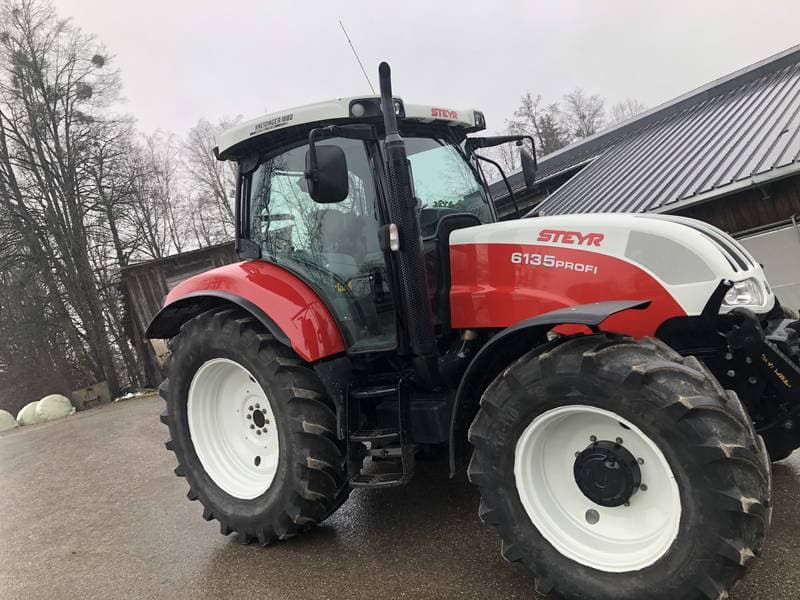

Steyr 6135 Profi

Last Updated: June 2024

Overview

The Steyr 6135 Profi is a utility tractor noted for its robust engine and mechanical front-wheel drive (MFWD). This particular model is powered by an Iveco 6-cylinder turbocharged diesel engine which provides 136 horsepower at 2200 RPM. The liquid-cooled engine has a displacement of 410.6 cubic inches, and the tractor features a PowerShift 24-speed transmission that allows for a variety of tasks to be completed efficiently. It features a power steering system for ease of maneuverability and operates with a Category II hitch system on the rear. The tractor's 4WD is suitable for various terrains and pulling heavy loads. The 6135 Profi also sports a substantial operating weight of 11,790 lbs, which contributes to its stability and traction. The overall dimensions present a length of 178.4 inches, a width of 75.3 inches, and a height of 115 inches, making it capable of handling a wide range of agricultural tasks. The exact years of manufacture, along with some other detailed specifications, are not provided in the data received.
Show more...

Key Specifications

Category: Utility

Power Output: 136

Transmission: PowerShift

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 11,790

Fuel Type: Diesel

Steyr 6135 Profi vs. Similar Tractors

Power Output
Above Average
Greater than 90% of similar tractors.
Operating Weight
Poor
Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
410.6
Bore (in)
4.09
Stroke (in)
5.2
Rated RPM
2200
Power Output (hp)
136

Transmission

Type
PowerShift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
178.4
Width (in)
75.3
Height (in)
115
Operating Weight (lb)
11,790

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
