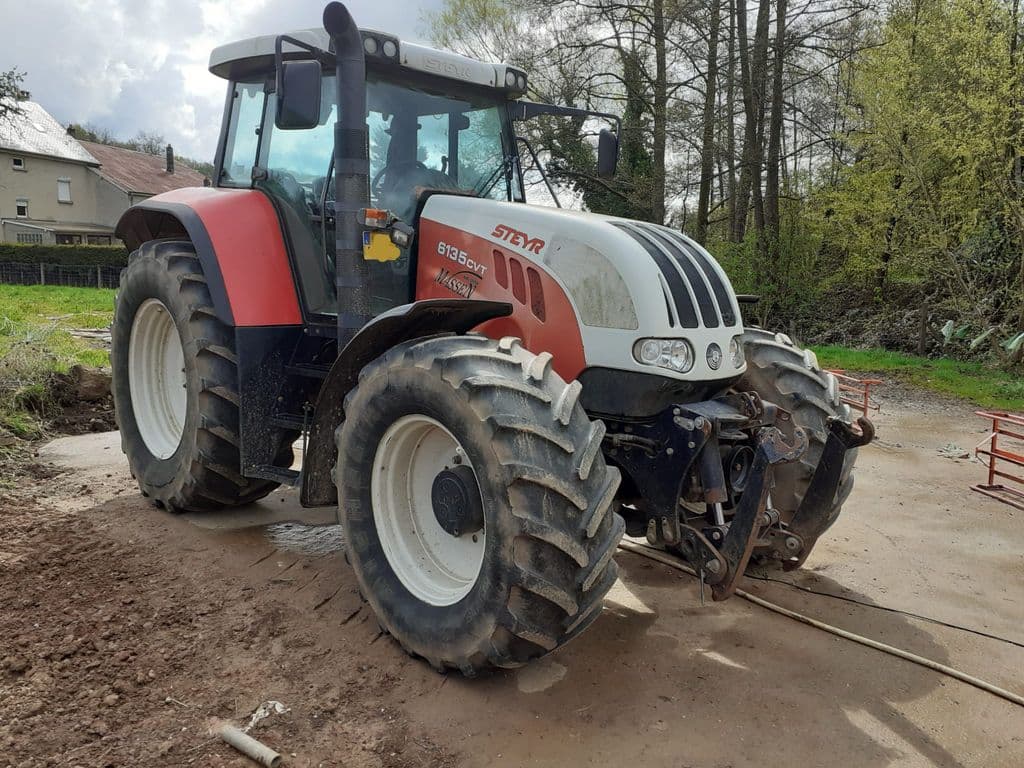

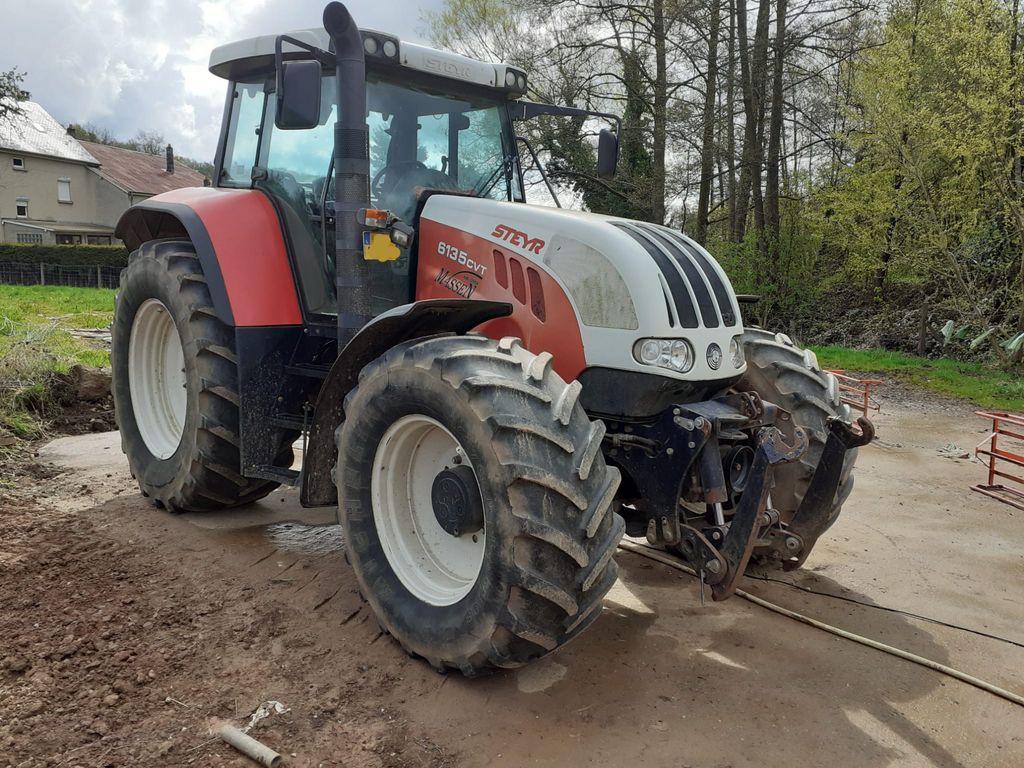

Steyr 6135 CVT

Last Updated: September 2024

Overview

The Steyr 6135 CVT is a powerful utility tractor built for tough farm work. It has a strong 6-cylinder diesel engine made by Sisu. This engine is very big for its class, with 402.8 cubic inches of space inside. It can produce 137 horsepower, which is a lot of power for a utility tractor. The engine is turbocharged and liquid-cooled, helping it work hard without getting too hot.

This tractor uses a special transmission called CVT, which means it can change speeds smoothly without shifting gears. It can go forward and backward at many different speeds. The 6135 CVT is big and heavy, weighing 14,100 pounds. It's 187 inches long, 98 inches wide, and 118 inches tall. It has four-wheel drive and power steering, making it easy to control in tough conditions. The tractor can pull heavy equipment with its strong hitch. It also has a long wheelbase of 110.5 inches, which helps it stay stable when working.
Show more...

Key Specifications

Category: Utility

Power Output: 137 hp (102.2 kW)

Transmission: CVT

Drive Type: 4WD

Operating Weight: 14100 lb (6396 kg)

Fuel Type: Diesel

Steyr 6135 CVT vs. Similar Tractors

Power Output

The Power Output for the Steyr 6135 CVT is Excellent. It is greater than 92% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Steyr 6135 CVT is Excellent. It is greater than 92% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Steyr 6135 CVT is Above Average. It is greater than 90% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Steyr 6135 CVT is Below Average. It is greater than 15% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Sisu
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement
403 ci (6.6 L)
Bore
4.25 in (107.9 mm)
Stroke
4.72 in (119.9 mm)
Rated RPM
2100
Power Output
137 hp (102.2 kW)

Transmission

Type
CVT
Forward Gears
Infinite
Reverse Gears
Infinite

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
