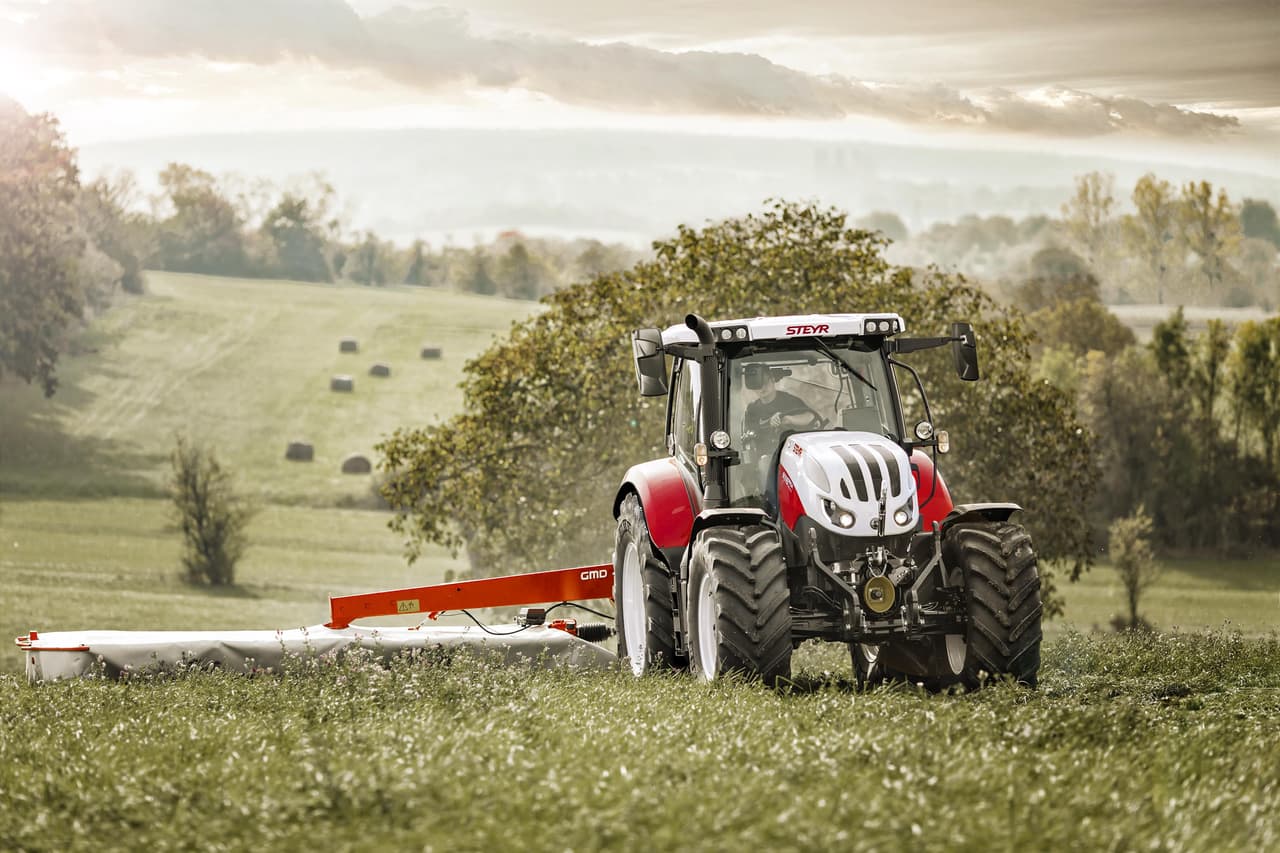

Steyr 4135 Profi CVT

Last Updated: September 2024

Overview

The Steyr 4135 Profi CVT is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by Iveco that puts out 135 horsepower. This engine power is very high compared to other tractors. The tractor uses a special transmission called CVT, which means it can change speeds smoothly without shifting gears.

This Steyr tractor is big and sturdy, weighing 10,781 pounds. It's about 202 inches long, 97 inches wide, and 118 inches tall. The tractor has four-wheel drive, which helps it move well in different conditions. It also has power steering to make it easier to control. The engine is turbocharged and cooled by liquid, which helps it run better. The hydraulic system is advanced, using a closed center load sensing design. This tractor meets Stage IV emissions standards, which means it's designed to be cleaner for the environment.
Show more...

Key Specifications

Category: Utility

Power Output: 135 hp (100.7 kW)

Transmission: CVT (continuously variable transmission)

Drive Type: 4WD

Operating Weight: 10781 lb (4890 kg)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iveco
Cooling Type
Liquid-cooled
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement
274 ci (4.5 L)
Bore
4.09 in (103.9 mm)
Stroke
5.20 in (132.1 mm)
Rated RPM
2200
Power Output
135 hp (100.7 kW)

Transmission

Type
CVT (continuously variable transmission)
Forward Gears
Infinite
Reverse Gears
Infinite

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
