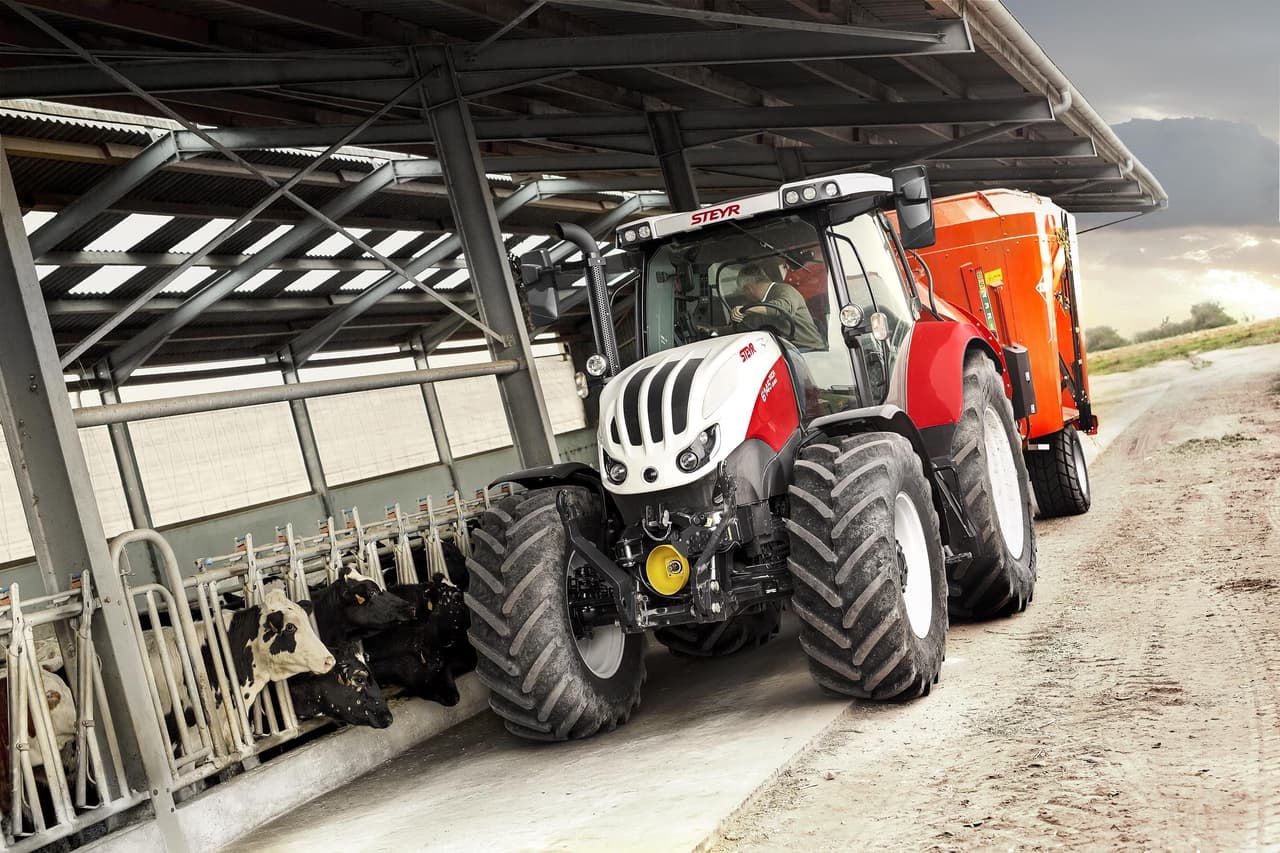

Steyr 4135 Profi

Last Updated: June 2024

Overview

The Steyr 4135 Profi is a utility tractor designed for a variety of agricultural tasks. It features a 4x4 MFWD 4WD chassis and is powered by a turbocharged intercooled diesel engine with 273.7 cubic inches of displacement, producing 135 horsepower at a rated RPM of 2200 and up to 169 horsepower at its maximum output. The liquid-cooled engine has a 16-valve configuration supplied by Iveco. The tractor’s transmission capabilities are robust, including a 16-speed, four-speed power shift, with the availability of a creeper transmission option as well increasing the number of forward gears to 32 and reverse gears to 17. This allows for a broad range of speed options to suit the task at hand. The 4135 Profi is equipped with standard agricultural tires and has a wheelbase of 104.2 inches, giving it a stable operating platform. With a shipping weight of 10,781 pounds and accommodating rear three-point hitch of category III/II, the tractor is capable of handling a variety of implements and attachments. Additional specifications regarding the operator station, PTO, brake system, and other unique features of the tractor are unspecified.
Show more...

Key Specifications

Category: Utility

Power Output: 135 (Rated), 169 (Maximum)

Transmission: 16-speed four-speed power shift and creeper

Drive Type: 4WD

Operating Weight: 10781 (Shipping Weight)

Fuel Type: Turbocharged intercooled diesel

Steyr 4135 Profi vs. Similar Tractors

Power Output
Above Average
Greater than 89% of similar tractors.
Operating Weight
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Turbocharged intercooled diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
273.7
Bore (in)
4.09
Stroke (in)
5.2
Rated RPM
2200
Power Output (hp)
135 (Rated), 169 (Maximum)

Transmission

Type
16-speed four-speed power shift and creeper
Forward Gears
32 (assuming creeper adds additional gears)
Reverse Gears
17 (based on discrepancy between 16-speed and listing of 17 reverse)
Total Gears
-

Dimensions

Length (in)
202.2
Width (in)
97.2
Height (in)
118
Operating Weight (lb)
10781 (Shipping Weight)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (specification not standard diameter provided)
Front Tire Width (in)
Unknown (specification not standard width provided)
Rear Tire Diameter (in)
Unknown (specification not standard diameter provided)
Rear Tire Width (in)
Unknown (specification not standard width provided)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
III/II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (assuming the negative refers to electrical system polarity)
Brake Type
-
Hydraulic System Type
Closed center load sensing
