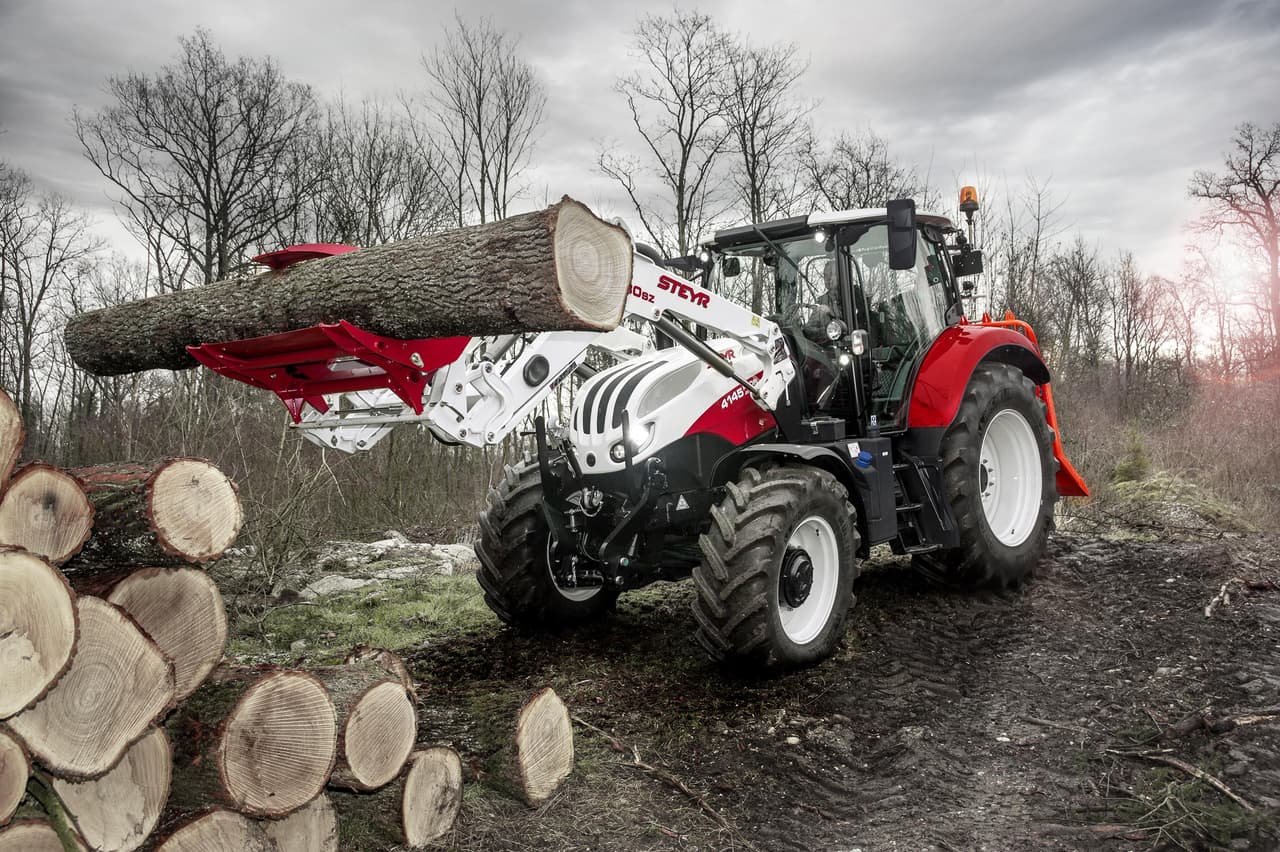

Steyr 4125 Profi

Last Updated: June 2024

Overview

The Steyr 4125 Profi is engineered to deliver robust performance and adaptability. As a utility tractor, it is equipped with a 4x4 MFWD 4WD chassis, augmenting its capabilities in a variety of terrains and farm tasks. Its heart lies in the liquid-cooled 4.5-liter Iveco turbocharged intercooled diesel engine, providing an impressive 155 horsepower at a rated RPM of 2200, with the benefit of 16 valves that ensure efficient operation. Comfortable power-assisted steering complements the advanced four-speed power shift transmission, which boasts 16 forward and reverse gears, signifying that this tractor is suited for a multitude of operations requiring different speed adjustments. The 4125 Profi showcases a solid frame and body, with a length of 202.2 inches, a width of 97.2 inches, and a height of 118 inches. It maintains a reputable presence on the field with an operating weight of 10781 lbs. Prevalent in its class, the tractor accommodates hitching implements with a rear Type III/II hitch and operates through a sophisticated closed center load sensing hydraulic system, further demonstrating its versatility for various agricultural endeavors.
Show more...

Key Specifications

Category: Utility

Power Output: 155

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 10781

Fuel Type: Diesel

Steyr 4125 Profi vs. Similar Tractors

Power Output
Excellent
Greater than 91% of similar tractors.
Operating Weight
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
273.7
Bore (in)
4.09
Stroke (in)
5.2
Rated RPM
2200
Power Output (hp)
155

Transmission

Type
Four-speed power shift
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
202.2
Width (in)
97.2
Height (in)
118
Operating Weight (lb)
10781

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (assuming "negative" refers to electrical ground connection)
Brake Type
-
Hydraulic System Type
Closed center load sensing
