Steyr 4120 Profi

Last Updated: June 2024

Overview

The Steyr 4120 Profi is a utility tractor that features a 4x4 MFWD 4WD chassis, making it suitable for various agricultural tasks. It is powered by an Iveco turbocharged intercooled diesel engine with a displacement of 273.7 ci, capable of delivering up to 121 horsepower at a rated RPM of 2200 and comes with a robust four-speed power shift transmission offering 16 forward and reverse gears, which greatly enhances its versatility in the field. With a wheelbase of 95 inches and an operating weight of 10626 lbs, it offers stability and support for a range of attachments and implements, making it a highly adaptable machine for a variety of operations. The tractor's hydraulic system is a closed center load-sensing type that, along with a three-point hitch connection, can handle various tasks with improved efficiency.

Key Specifications

Category: Utility

Power Output: 121

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 10626

Fuel Type: Diesel

Image Gallery

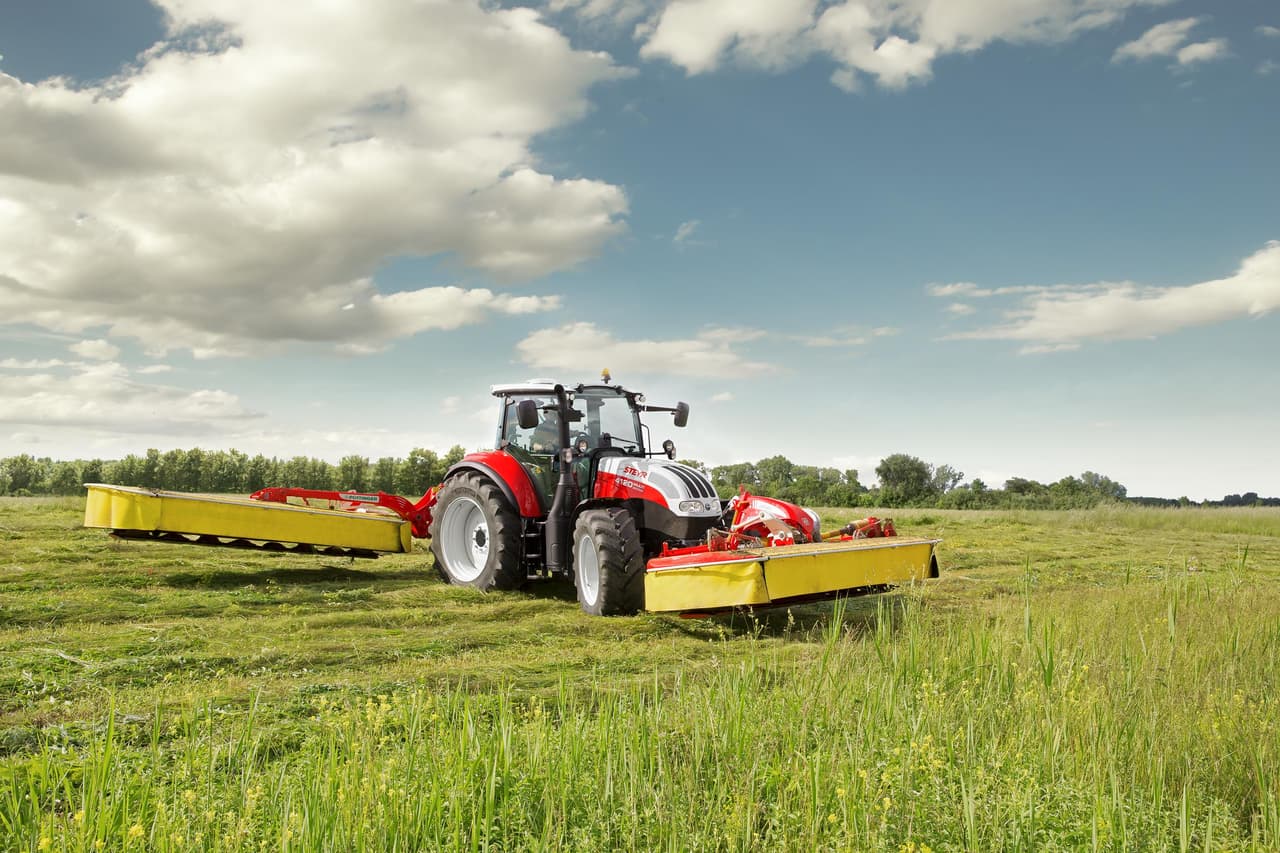

Steyr 4120 Profi Tractor

Steyr 4120 Profi vs. Similar Tractors

Power Output

Above Average

Greater than 88% of similar tractors.

Operating Weight

Average

Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iveco
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Vertical
Valve Configuration: 16-valve
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 4
Displacement (ci): 273.7
Bore (in): 4.09
Stroke (in): 5.2
Rated RPM: 2200
Power Output (hp): 121

Transmission

Type: Four-speed power shift
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 169
Width (in): 73.75
Height (in): 113.2
Operating Weight (lb): 10626

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: III/II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (assumed from "negative" starter type)
Brake Type: -
Hydraulic System Type: Closed center load sensing
