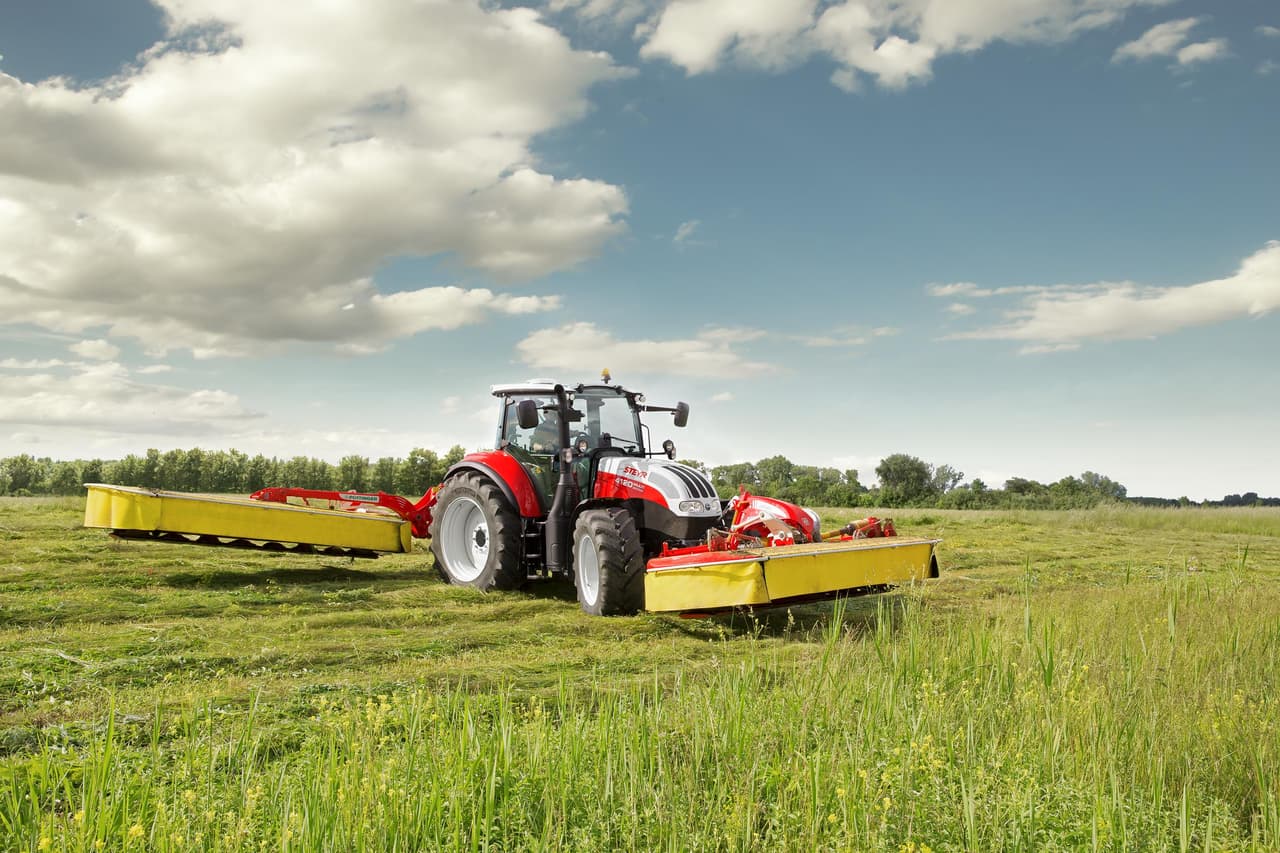

Steyr 4120 Multi

Last Updated: June 2024

Overview

The Steyr 4120 Multi is a utility tractor designed with versatility in mind to accommodate a wide range of agricultural needs. This tractor features a four-wheel drive system (4WD), complemented by a power steering system for ease of maneuverability on diverse terrains. At the heart of the machine lies a robust turbocharged intercooled diesel engine manufactured by Iveco, providing a power output of 117 horsepower from its liquid-cooled 4-cylinder engine, with a displacement of 207.5 cubic inches. The tractor boasts a 32-speed four-speed power shift transmission, allowing the operator to select the optimal gear for varying field conditions, whether that involves plowing, seeding, or hauling tasks. Despite the strength under the hood, it boasts a power shift transmission that enables a seamless change of speeds and direction, increasing both the efficiency and the user's comfort during prolonged operations. This tractor represents a dependable and powerful option capable of addressing demanding farm chores.
Show more...

Key Specifications

Category: Utility

Power Output: 117

Transmission: Four-speed power shift

Drive Type: 4WD

Fuel Type: Diesel

Steyr 4120 Multi vs. Similar Tractors

Power Output
Above Average
Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
207.5
Bore (in)
3.9
Stroke (in)
4.33
Rated RPM
-
Power Output (hp)
117

Transmission

Type
Four-speed power shift
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
