Steyr 1400

Last Updated: June 2024

Overview

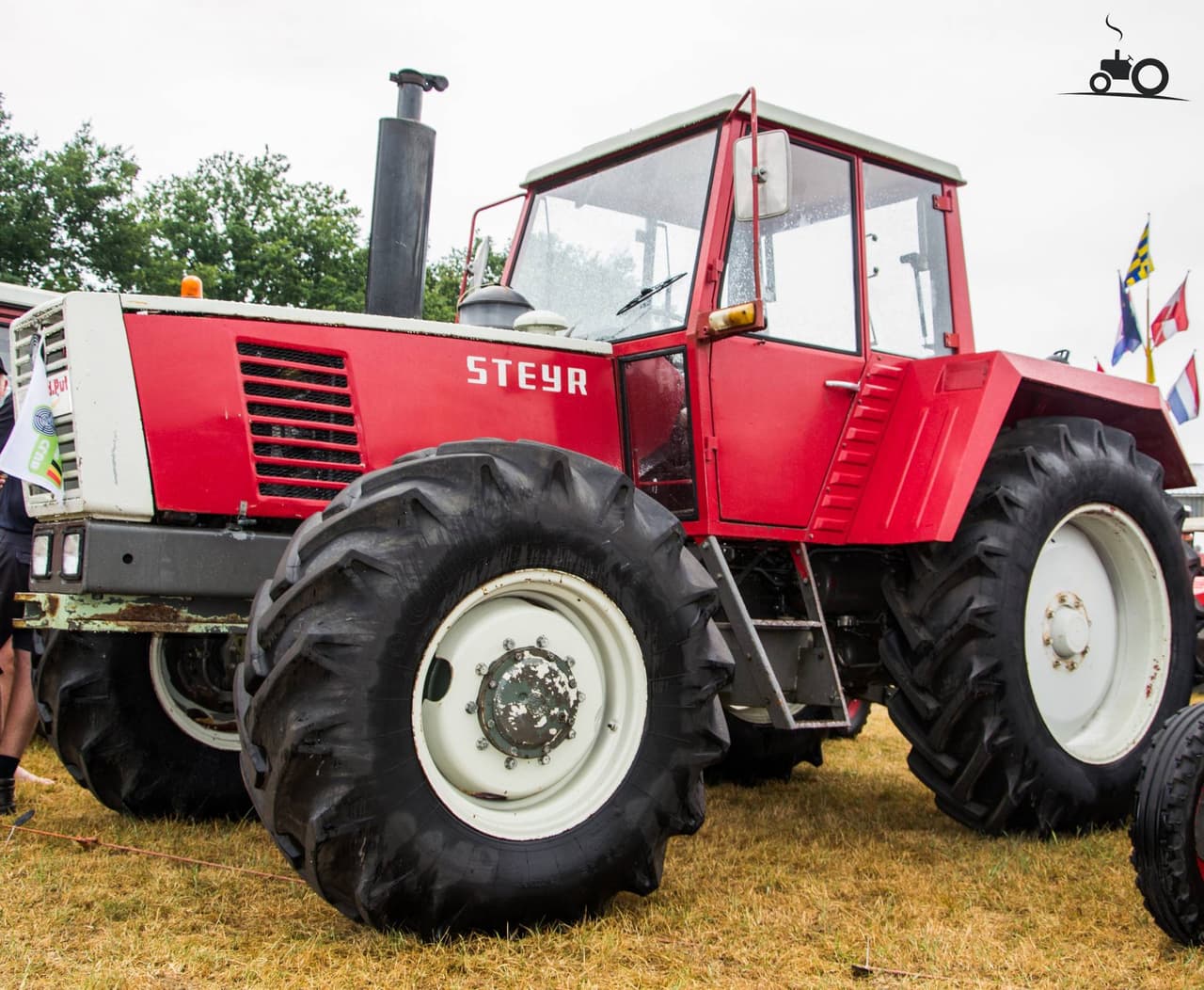

The Steyr 1400 tractor is a robust and versatile machine, designed to handle a variety of agricultural tasks. It features a Steyr WD 612.85 diesel engine, boasting a power output of 140 horsepower and capable of reaching up to 2200 rated RPM. This 4WD tractor has a liquid-cooled, six-cylinder engine with a displacement of 402.2 ci. The intricate synchro transmission features 12 forward gears and 4 reverse, accommodating various working conditions. The tractor is equipped with power steering for smoother operation and has a substantial operating weight of 12480 lbs, which contributes to its stability and traction. With a wheelbase of 106.3 inches and dimensions marking a length of 193.3 inches and height of 108.3 inches, it touches on impressive size and is designed for significant agricultural workloads. The tractor's tires are configured with agriculture in mind, having both front and rear tires sized at 18.4-26 and 18.4-38 respectively. The Steyr 1400 is a reliable workhorse well-suited for the demands of modern farming.
Show more...

Key Specifications

Power Output: 140

Transmission: Synchro

Drive Type: 4WD

Operating Weight: 12480

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Steyr
Model
WD 612.85
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
402.2
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
140

Transmission

Type
Synchro
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
193.3
Width (in)
-
Height (in)
108.3
Operating Weight (lb)
12480

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
