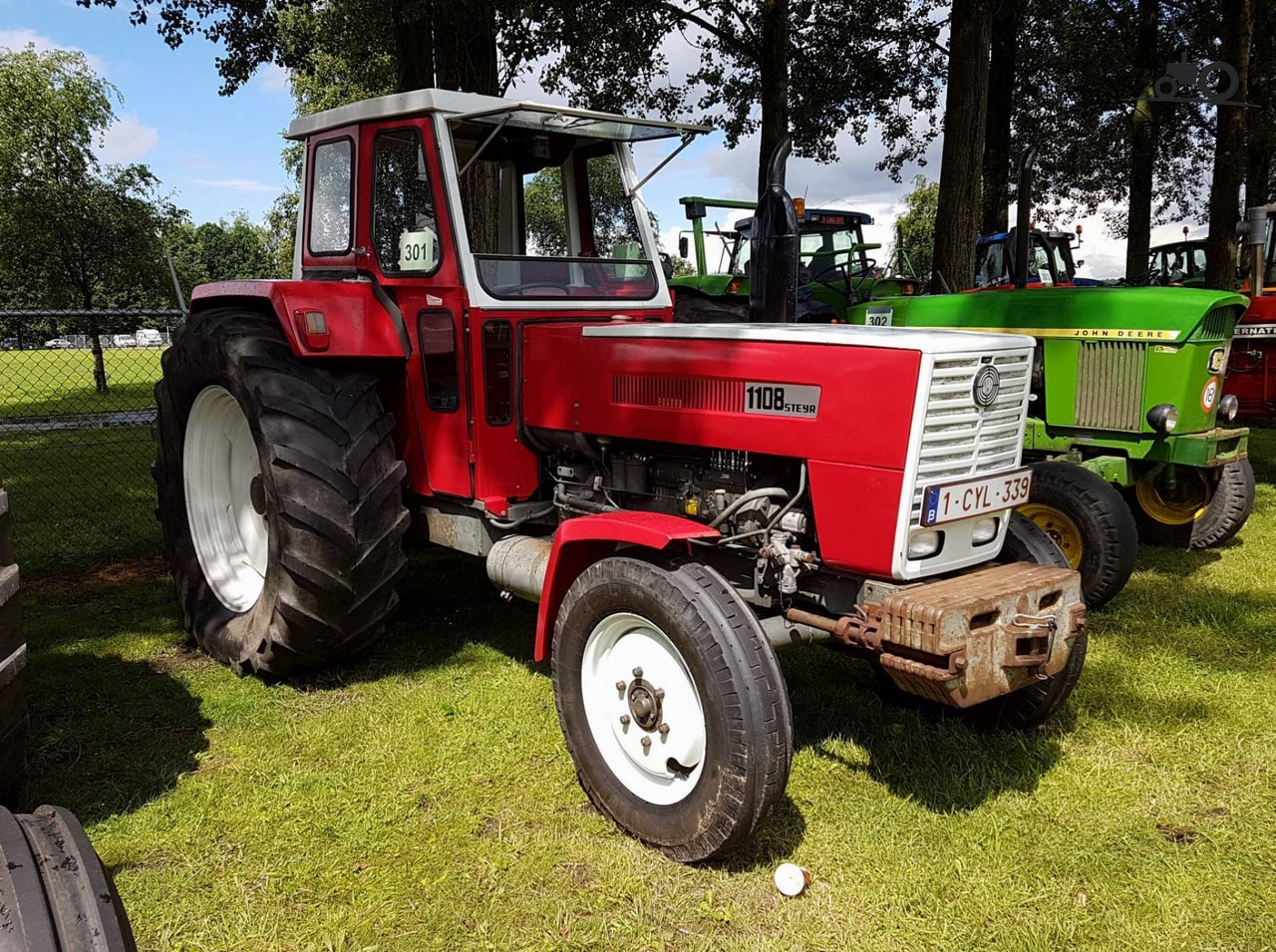

Steyr 1108

Last Updated: June 2024

Overview

The Steyr 1108 is a utility tractor, proudly bearing the manufacturer's name as both its brand and engine maker. It comes with a 4x2 two-wheel drive chassis, suited for a variety of tasks on the farm. The tractor is steered via a hydrostatic power system, affording ease of maneuverability and precise control during operation. At the heart of the Steyr 1108 lies a robust WD 610.44 diesel engine with a respectable displacement of 364.7 cubic inches, which translates into a solid 105 horsepower. This power plant is designed for efficiency and durability, capable of reaching up to 2300 rated RPMs and delivering sufficient torque for a range of agricultural tasks. Transmission is facilitated through a synchro-type gearbox, featuring 12 forward and 6 reverse gears, giving the operator a wide range of speed options to match any job. The tractor’s dimensions and weight underscore its solid build and capability, standing at 104.3 inches tall with a weight of 9228 lbs. Its large agricultural tires measure 7.50-20 at the front and 18.4-34 at the rear, providing the necessary traction and stability needed in diverse terrain.
Show more...

Key Specifications

Category: Utility

Power Output: 105

Transmission: Synchro

Drive Type: 2WD

Operating Weight: 9228

Fuel Type: Diesel

Steyr 1108 vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
Steyr
Model
WD 610.44
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
364.7
Bore (in)
4.13
Stroke (in)
4.53
Rated RPM
2300
Power Output (hp)
105

Transmission

Type
Synchro
Forward Gears
12
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
170.1
Width (in)
-
Height (in)
104.3
Operating Weight (lb)
9228

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
-
Rear Tire Diameter (in)
34
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
