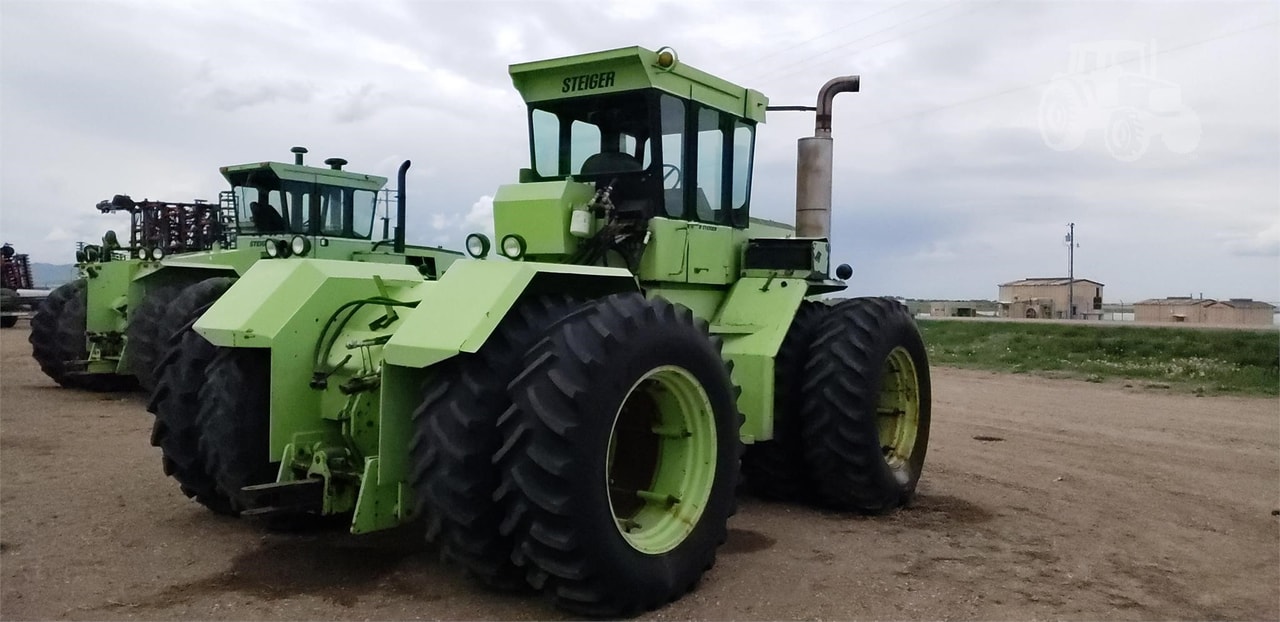

Steiger Wildcat III ST-210

Last Updated: June 2024

Overview

The Steiger Wildcat III ST-210 is a powerful, articulated four-wheel drive tractor designed for heavy-duty agricultural tasks. This model features a robust 210 horsepower Caterpillar 3208 diesel engine with a displacement of 636 cubic inches, ensuring ample power for demanding workloads. The tractor's chassis is 4x4 articulated 4WD, contributing to its exceptional maneuverability and stability in varied terrain. The fuel system utilizes direct injection, with an engine compression ratio of 16.5:1. Its torque is impressive at 485 lb-ft and peaks at 1400 RPM. The Wildcat III ST-210 comes with a 10-speed constant mesh Spicer SST 1010 transmission, with 10 forward gears and 2 reverse gears. It has an operating weight of 22,000 pounds and can handle a maximum weight of up to 25,000 pounds. The wheelbase is a spacious 118 inches, and the overall dimensions are 224 inches in length and 44 inches in width, although its height remains unspecified. The tractor is known for its reliability and is well-regarded for its capacity in various agricultural operations.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 210

Transmission: constant mesh

Drive Type: 4WD

Operating Weight: 22000

Fuel Type: diesel

Steiger Wildcat III ST-210 vs. Similar Tractors

Power Output
Excellent
Greater than 92% of similar tractors.
Operating Weight
Above Average
Greater than 70% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3208
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
direct injection
Cylinders
8
Displacement (ci)
636
Bore (in)
4.5
Stroke (in)
5
Rated RPM
2800
Power Output (hp)
210

Transmission

Type
constant mesh
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
224
Width (in)
44
Height (in)
-
Operating Weight (lb)
22000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
articulated power
Coolant Capacity (qts)
40
Front Tire Diameter (in)
34
Front Tire Width (in)
18.4
Rear Tire Diameter (in)
34
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Hitch Position | Unknown
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
open center
