Steiger Panther IV CS-325

Last Updated: June 2024

Overview

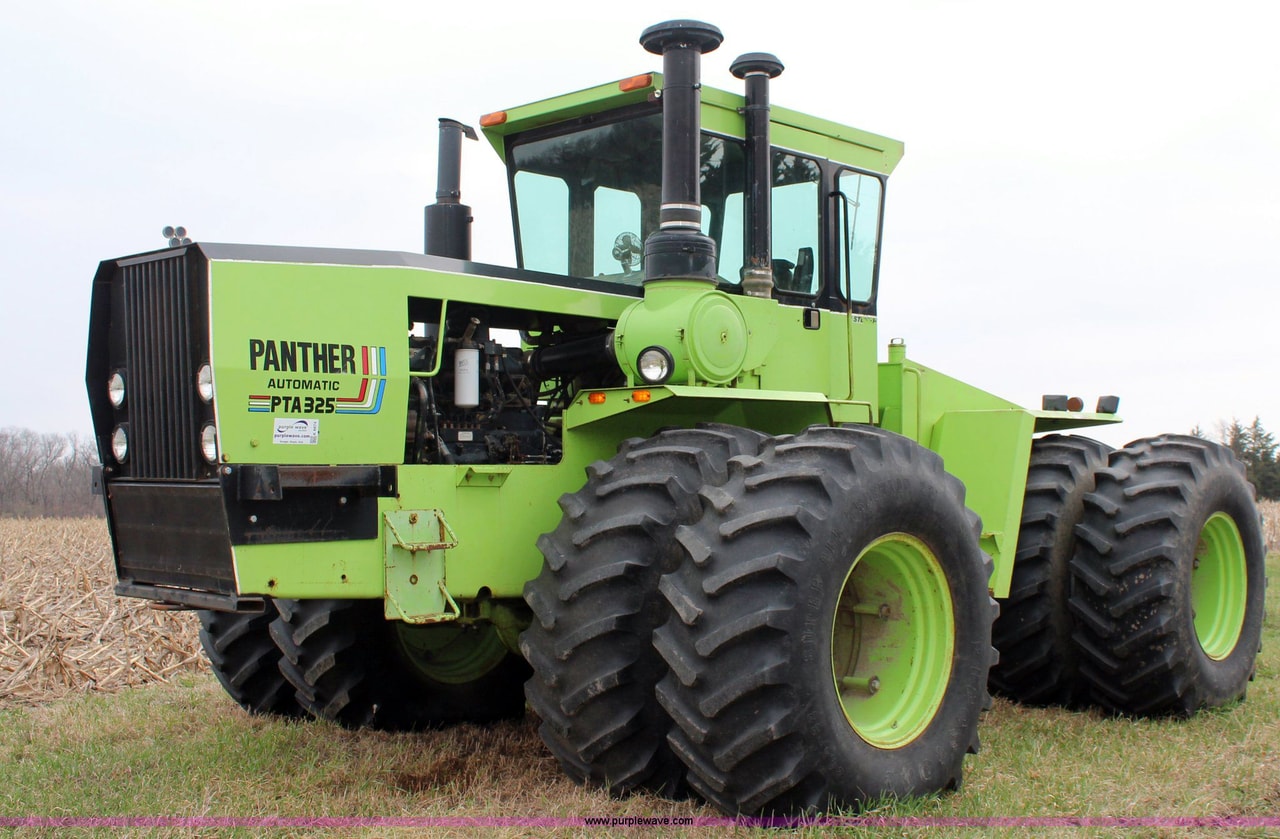

The Steiger Panther IV CS-325 is a powerful articulated four-wheel-drive tractor designed to tackle demanding agricultural tasks. Equipped with a robust 325 horsepower Caterpillar 3406 turbocharged diesel engine, it offers substantial pulling power and can operate a wide range of heavy implements. This tractor features a 10-speed power shift transmission, enabling smooth transitions between gears when moving forward and 2 reverse speeds for competent maneuverability. The liquid-cooled inline 6-cylinder engine has a significant displacement of 893 cubic inches, providing consistent high-performance work capability. The CS-325's chassis is designed for stability and durability, with a 129-inch wheelbase providing a sturdy foundation for various operations. The articulated power steering system enhances the tractor's agility, particularly useful in sizable, open fields. This machine is a formidable workhorse, built to handle the rigorous demands of modern farming with efficiency and reliability.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 325

Transmission: power shift

Drive Type: 4WD

Fuel Type: turbocharged diesel

Steiger Panther IV CS-325 vs. Similar Tractors

Power Output
Excellent
Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3406
Cooling Type
liquid-cooled
Cylinder Orientation
inline
Valve Configuration
-
Fuel Type
turbocharged diesel
Induction Type
turbocharged
Cylinders
6
Displacement (ci)
893
Bore (in)
5.4
Stroke (in)
6.5
Rated RPM
-
Power Output (hp)
325

Transmission

Type
power shift
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
articulated power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
open center load sensing
