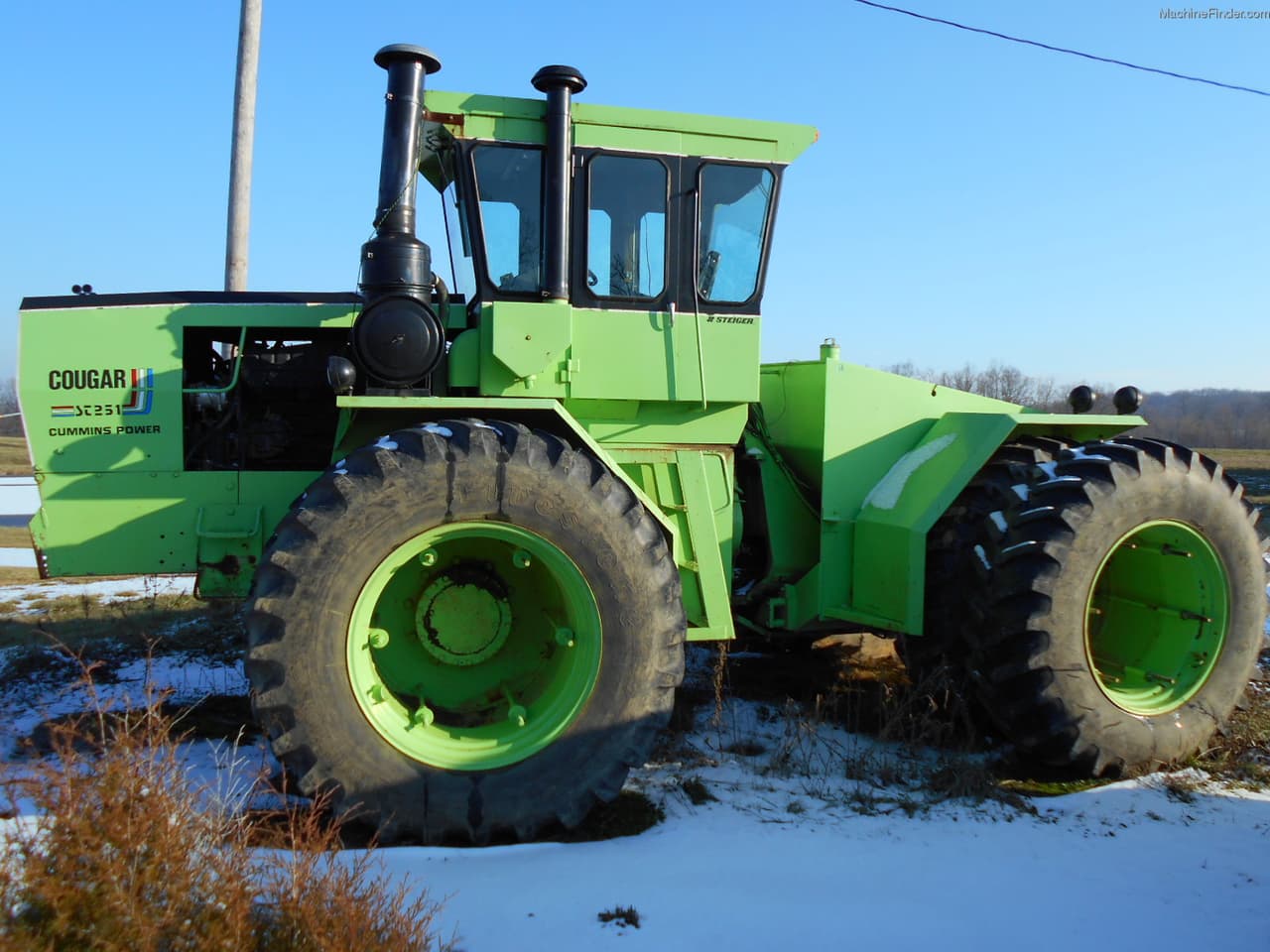

Steiger Cougar III PTA-280

Last Updated: June 2024

Overview

The Steiger Cougar III PTA-280 is a large, articulated four-wheel drive (4WD) tractor designed for heavy-duty farming applications. Its robust chassis and powerful 4WD system allow it to perform well in various agricultural tasks, particularly in environments that require additional traction and power. The tractor is powered by a choice of two large 6-cylinder diesel engines from Cummins and Caterpillar, with displacements of 855 and 893 cubic inches respectively. At 2100 RPM, the engines are rated at 280 horsepower and are capable of delivering high levels of torque, essential for pulling heavy implements. The torque figures are recorded at 920 lb-ft and 945 lb-ft for the different engine configurations. With a 10-speed power shift transmission featuring a torque converter, the tractor offers reliability and ease of operation. The Cougar III PTA-280 is a testament to Steiger's focus on building tractors capable of handling the demanding needs of modern agriculture. While it has significant operating weight, its wheelbase and tire configuration are designed to limit soil compaction. It is evident that such a tractor is equipped to face the challenges of large-scale farming operations with its durability and power.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 280 hp

Transmission: Power shift with torque converter

Drive Type: 4WD

Operating Weight: 27600

Fuel Type: Diesel

Steiger Cougar III PTA-280 vs. Similar Tractors

Power Output
Excellent
Greater than 94% of similar tractors.
Operating Weight
Above Average
Greater than 72% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins, Caterpillar
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6-cyl
Displacement (ci)
855 ci, 893 ci
Bore (in)
5.50, 5.4
Stroke (in)
6.00, 6.5
Rated RPM
2100
Power Output (hp)
280 hp

Transmission

Type
Power shift with torque converter
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
264.6
Width (in)
99
Height (in)
-
Operating Weight (lb)
27600

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Articulated power
Coolant Capacity (qts)
56 qts, 70 qts
Front Tire Diameter (in)
34
Front Tire Width (in)
-
Rear Tire Diameter (in)
34
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
III*
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
