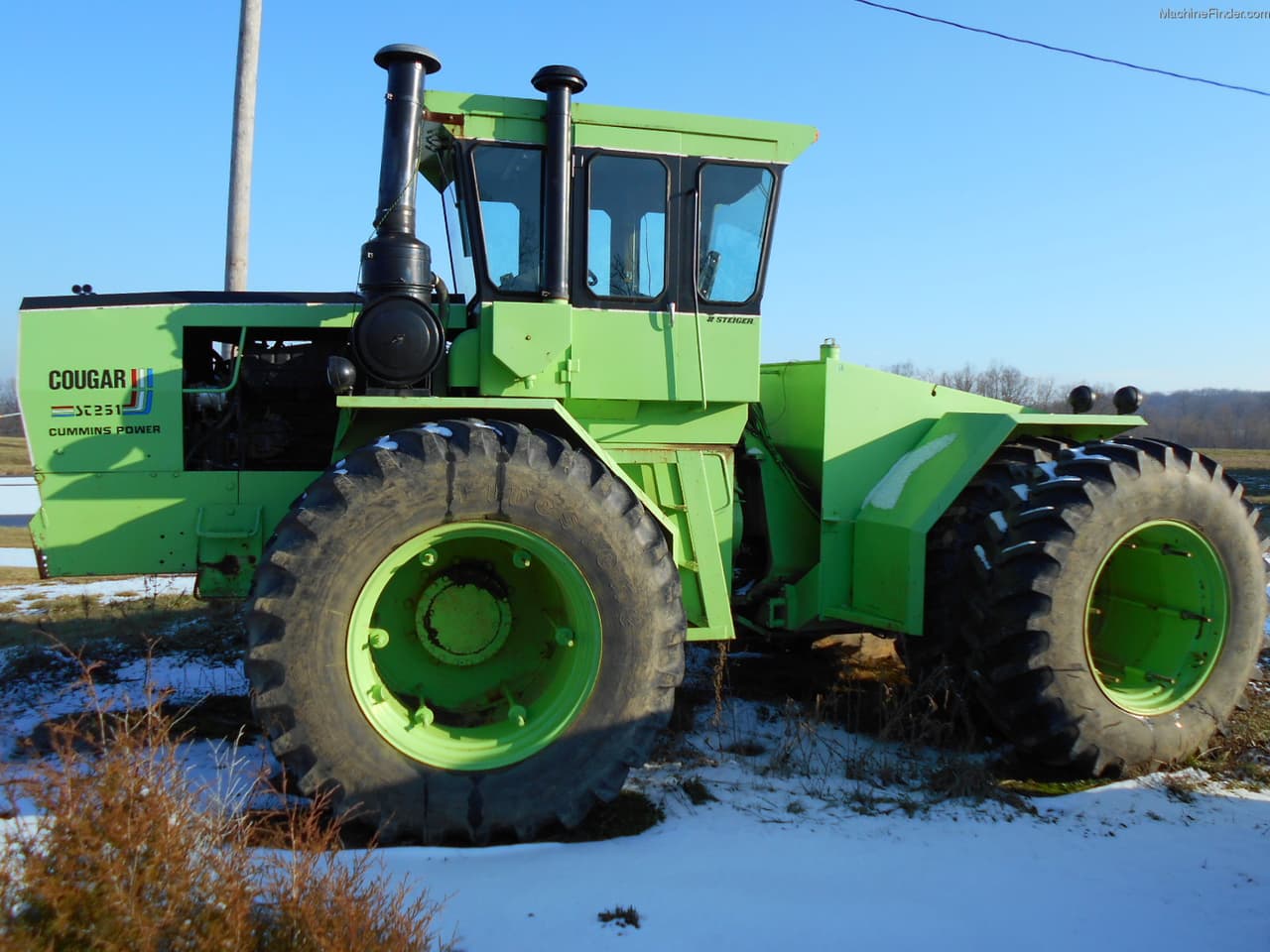

Steiger Cougar

The Steiger Cougar is a large articulated four-wheel-drive (4WD) tractor, known for its robust construction and substantial power output. Equipped with a Caterpillar D333T turbocharged diesel engine that delivers 300 horsepower and a torque of 681 lb-ft at 1550 RPM, it was designed for heavy-duty agricultural tasks. The engine features a massive 638 cubic inches (ci) displacement and operates at a rated RPM of 2200. It utilizes a liquid-cooling system to maintain optimal temperatures during prolonged operations. The chassis is an articulated 4x4 4WD setup, providing excellent traction and maneuverability in varied terrain. The tractor uses a 10-speed gear transmission with 10 forward and 2 reverse gears, allowing the operator to select the proper speed for different tasks efficiently. Steering details are not specified, but the tractor has a reported steering flow of 16 gpm and pressure of 1500 psi, suggesting it might have power steering. The Caterpillar engine employs a dry air cleaner and required oil and coolant capacities are 25 and 60 quarts respectively. The operating weight of this Steiger Cougar model is about 26,000 pounds, indicating its suitability for heavy applications. Overall dimensions include a length of 244 inches, a width of 96 inches, and a height of 133.25 inches, with ground clearance listed at 16.75 inches. It was designed with durability in mind, as seen in its heavy shipping weight of approximately 21,000 lbs. The Cougar's hydraulic system is of the open center type, but additional details on the hydraulic capacity and other specific features are not listed. The tractor's large footprint, including the same-sized front and rear tires, paired with the significant ground clearance, points to a machine intended for significant agricultural production work.
