Steiger Bearcat

Last Updated: June 2024

Overview

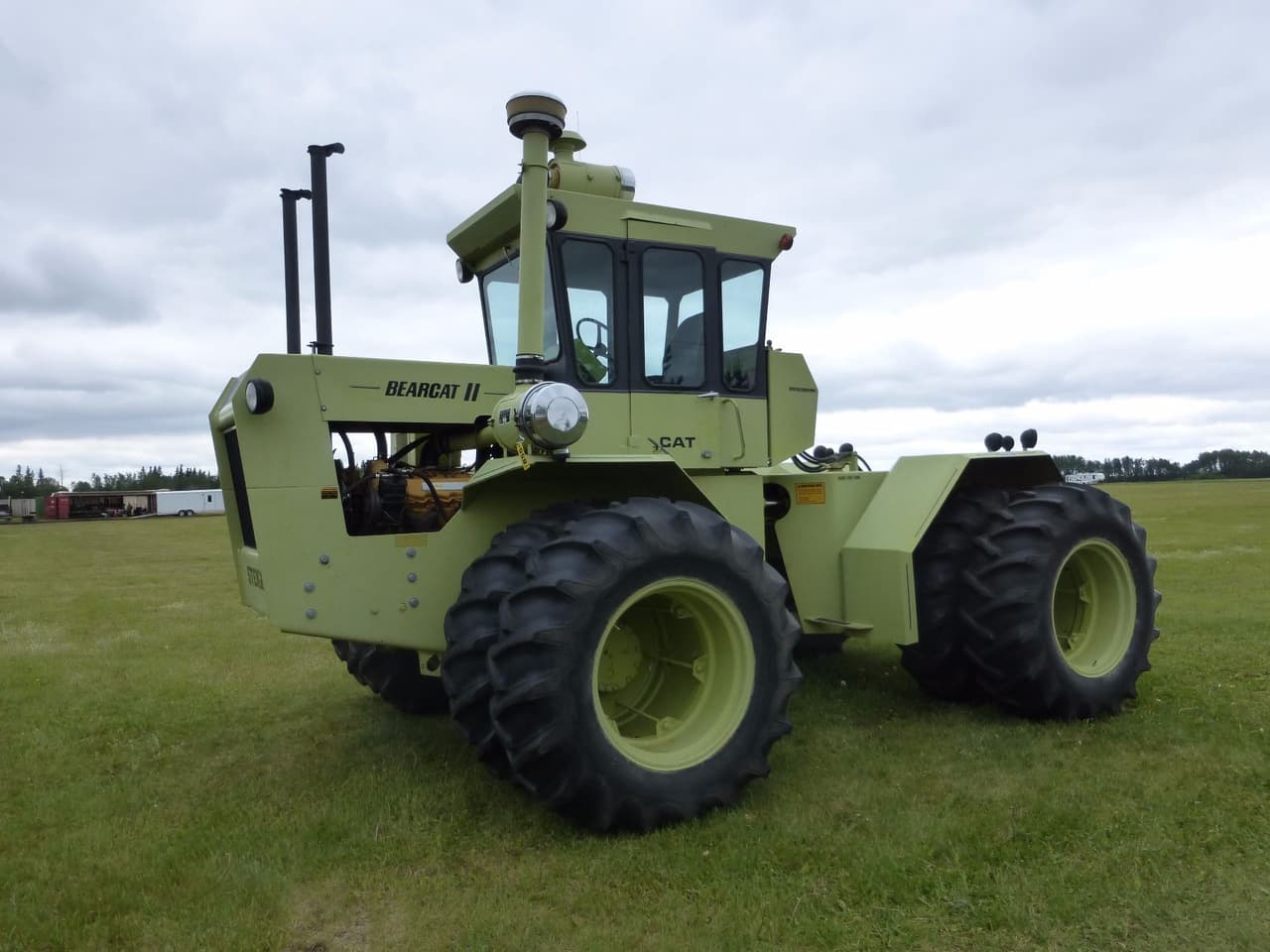

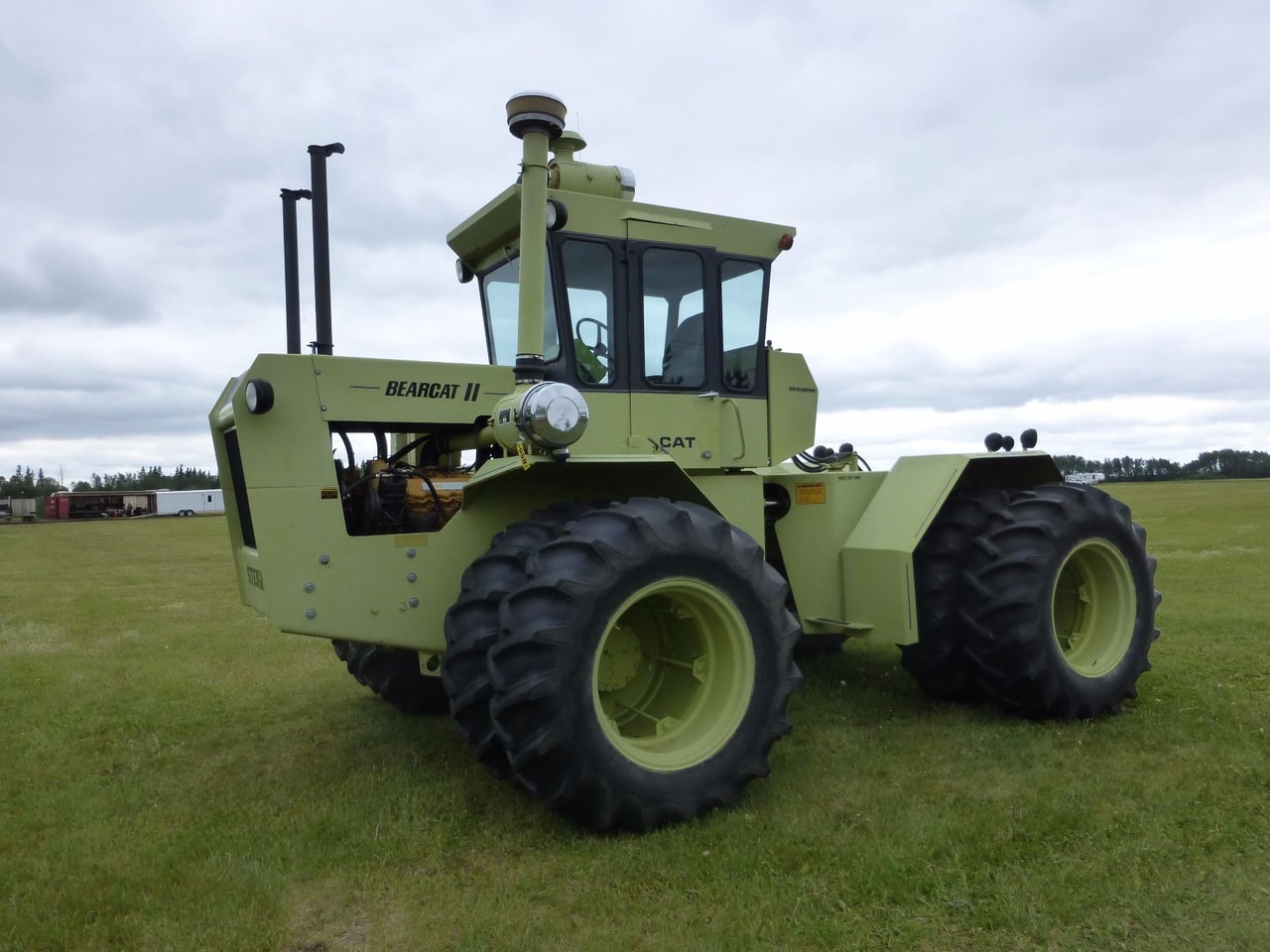

The Steiger Bearcat is an articulated four-wheel drive (4WD) tractor, well-suited for tasks requiring substantial power and traction. Its rugged frame and durable engine, the Caterpillar model 3160 diesel, with a displacement of 636 cubic inches, provide reliable performance in various conditions. It outputs a robust 225 horsepower, managing demanding agricultural tasks with relative ease. The inclusion of a 10-speed manual transmission with 10 forward gears and 2 reverse allows for adaptability in different working scenarios. With its large agricultural tires on both the front and rear (23.1-26), the tractor maintains good flotation and traction, essential for productivity in a range of soil conditions. Weighing in at 19,600 pounds, it's a heavyweight machine designed to handle significant loads and challenging tasks commonly encountered on large farming operations.
Show more...

Key Specifications

Power Output: 225

Transmission: Manual

Drive Type: Four-wheel Drive (4WD)

Operating Weight: 19600

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3160
Cooling Type
Liquid-cooled
Cylinder Orientation
V-8
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
8
Displacement (ci)
636
Bore (in)
4.5
Stroke (in)
5
Rated RPM
-
Power Output (hp)
225

Transmission

Type
Manual
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
19600

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
Four-wheel Drive (4WD)
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
26
Front Tire Width (in)
-
Rear Tire Diameter (in)
26
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
