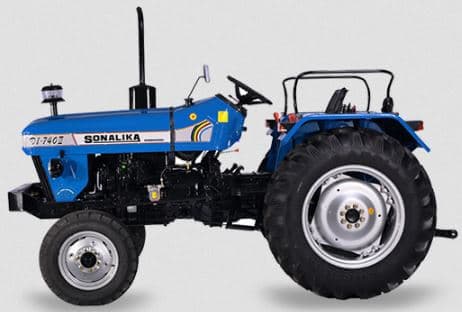

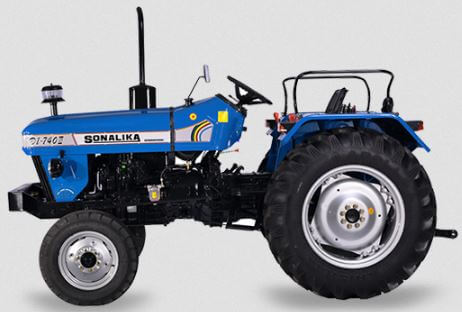

Sonalika DI 740

Last Updated: June 2024

Overview

The Sonalika DI 740 is an agricultural tractor known for its robust design and practical features. At the heart of this tractor is a Sonalika S 324 diesel engine with 3 cylinders and a displacement of 158.2 cubic inches, delivering a power output of 36 horsepower, which is efficiently utilized through an 8-speed manual transmission. This tractor operates at a rated RPM of 2000. Designed primarily for two-wheel-drive (2WD) operations, it features a simple yet effective 4x2 chassis configuration. It's equipped with a front tire size of 6.00-16 and a larger rear tire size of 12.4-28, complementing the drivetrain for varied agricultural tasks. The DI 740 presents a significant ground clearance of 14.8 inches, catering well to its utility in diverse farm environments. With a length of 139.4 inches, a width of 67.7 inches, and a height of 89.8 inches, the tractor demonstrates a substantive presence while maintaining maneuverability on the field. The weight information appears to have a typographical error; a tractor of this size and specifications would typically weigh around 3400 lbs. Precise, objective specifications such as wheelbase, dimensions, and engine details support current owners in maximizing the utilization and maintenance of their Sonalika DI 740.
Show more...

Key Specifications

Power Output: 36

Transmission: Manual

Drive Type: 2WD

Operating Weight: 3400 (Assumed, correcting the erroneous "75.2 lbs")

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Sonalika
Model
S 324
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
158.2
Bore (in)
3.5
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
36

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
139.4
Width (in)
67.7
Height (in)
89.8
Operating Weight (lb)
3400 (Assumed, correcting the erroneous "75.2 lbs")

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
