Simplicity Legacy 25

Last Updated: June 2024

Overview

The Simplicity Legacy 25 is a garden tractor known for its robust engine and user-friendly features. It is equipped with a Kohler CH740 engine that delivers a respectable 25 horsepower with a displacement of 44.3 cubic inches. The V-twin, air-cooled, naturally aspirated gasoline engine ensures efficient operation, while the hydrostatic transmission with infinite forward and reverse (2-range) gears allows for precise control and ease of use. Power steering and disc brakes contribute to the tractor’s maneuverability and safety. The open operator station ensures uncomplicated access; however, there is an option for a weather cab or ROPS for enhanced protection. The tractor's weight of 800 pounds and dimensions, with a length of 78.7 inches and a width of 44.5 inches, reflect a compact yet sturdy design suitable for various garden and lawn maintenance tasks.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 25

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 800

Fuel Type: Gasoline

Image Gallery

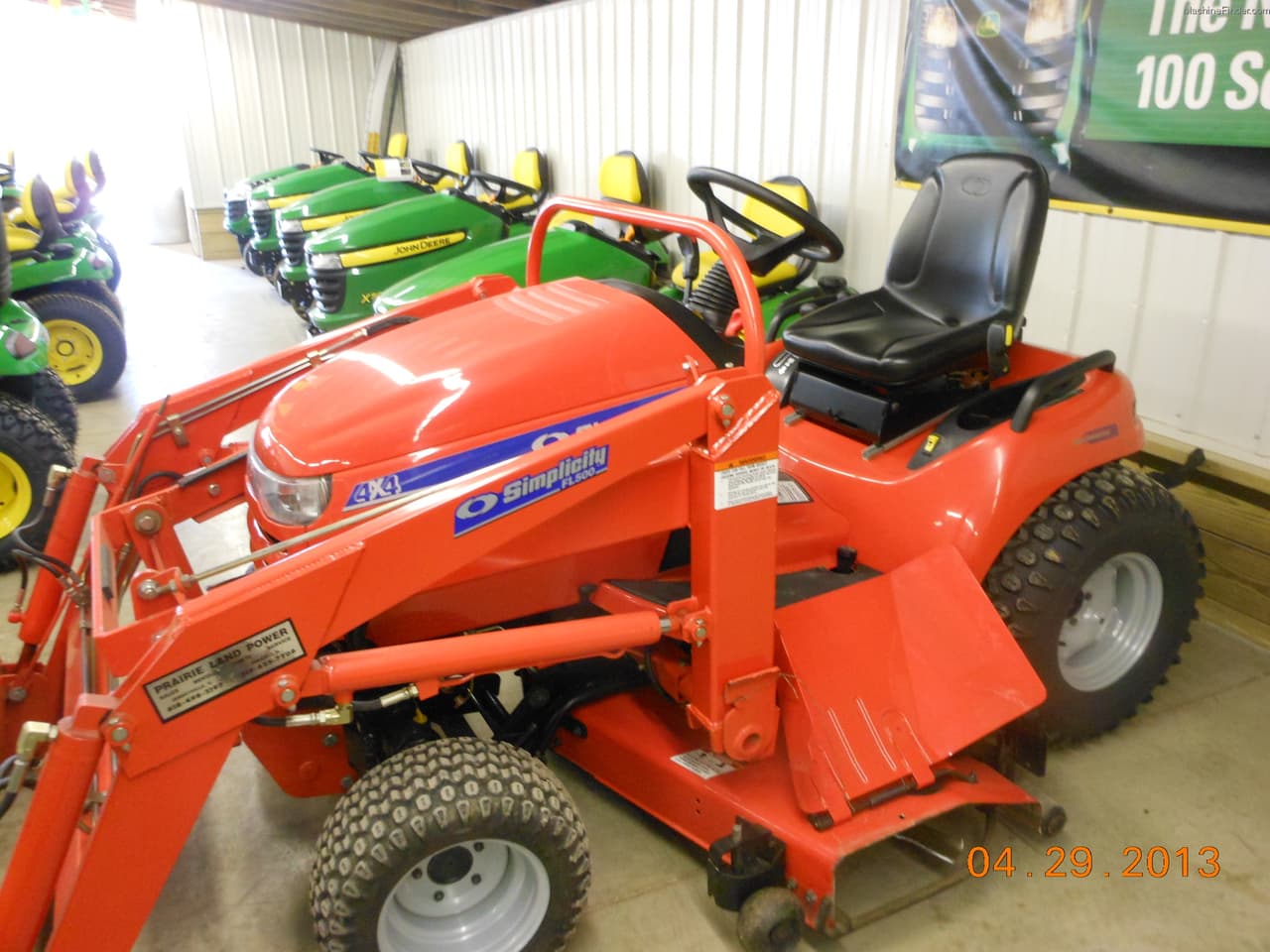

Simplicity Legacy 25 Tractor Simplicity Legacy 25 Tractor

Simplicity Legacy 25 vs. Similar Tractors

Power Output
Excellent
Greater than 91% of similar tractors.
Hitch Capacity
Below Average
Greater than 14% of similar tractors.
Operating Weight
Above Average
Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kohler
Model
CH740
Cooling Type
Air-cooled
Cylinder Orientation
V-twin
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
44.3
Bore (in)
3.27
Stroke (in)
2.64
Rated RPM
3600
Power Output (hp)
25

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
78.7
Width (in)
44.5
Height (in)
50.8
Operating Weight (lb)
800

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf
Manufacture - End Year
2003
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
450
Operator Station Type
Open (Optional cab or ROPS)
Starter Type
Electric
Brake Type
Disc
Hydraulic System Type
-
