Simplicity 9518

Last Updated: June 2024

Overview

The Simplicity 9518 is a compact utility tractor, embodied with a Toyosha 3-cylinder liquid-cooled diesel engine, delivering 18 horsepower with a displacement of 61.27 cubic inches operating at a rated rpm of 2500. It offers a partially synchronized transmission with 9 forward gears and 3 reverse gears along with manual steering. Its chassis comes in either a 2WD or an optional 4WD configuration, with lawn/turf tires as the standard. It features a wheelbase of 50.8 inches and varies in length, width, and height dimensions. It's notable for an electric starter system. The 2WD variant weighs 1278 lbs, while the enhanced traction 4WD weighs in at 1448 lbs. The tractor is adaptable to a variety of tasks around small farms or estates. Specific information regarding the hitch system, PTO speeds, hydraulics, and other detailed features remain unspecified in the data provided.

Key Specifications

Category: Utility

Power Output: 18

Transmission: Partially synchronized

Drive Type: 2WD or 4WD

Operating Weight: 1278 for 2WD and 1448 for 4WD

Fuel Type: Diesel

Image Gallery

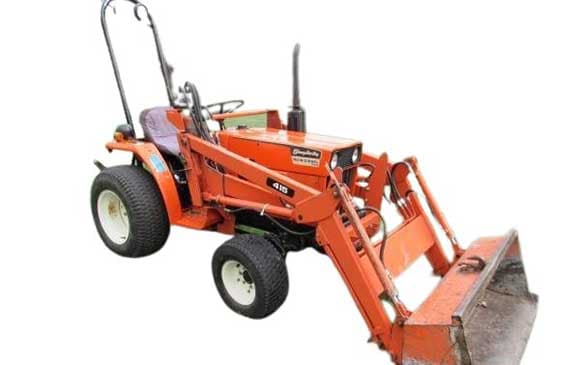

Simplicity 9518 Tractor

Simplicity 9518 vs. Similar Tractors

Power Output

Poor

Greater than 7% of similar tractors.

Operating Weight

Excellent

Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer: Toyosha
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Horizontal
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural
Cylinders: 3
Displacement (ci): 61.27
Bore (in): 2.87
Stroke (in): 3.15
Rated RPM: 2500
Power Output (hp): 18

Transmission

Type: Partially synchronized
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 82.7
Width (in): 40.9 for 2WD and 48.5 for 4WD
Height (in): 46.9 (steering wheel), 40.9 (hood)
Operating Weight (lb): 1278 for 2WD and 1448 for 4WD

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD optional
Drive Type: 2WD or 4WD
Steering Type: Manual
Coolant Capacity (qts): 3.2
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
