Simplicity 9020 PowrMax

Last Updated: June 2024

Overview

The Simplicity 9020 PowrMax is a 2WD garden tractor from the PowrMax series. This tractor was manufactured by Simplicity in Port Washington, Wisconsin, USA from 1975 to 1980. The Simplicity 9020 PowrMax is equipped with a 0.8 L (49.8 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite (3-range) forward and reverse gears. The tractor is outfitted with manual steering, disc brakes, an open operator station, and a 14.4-liter (3.8 US gal; 3.2 Imp gal) fuel tank. It utilizes lawn/turf type tires and is designed with Onan's air-cooled engine model CCKB, which produces a power output of 19.5 hp at 3600 RPM.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 19.5

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 1,299

Fuel Type: Gasoline

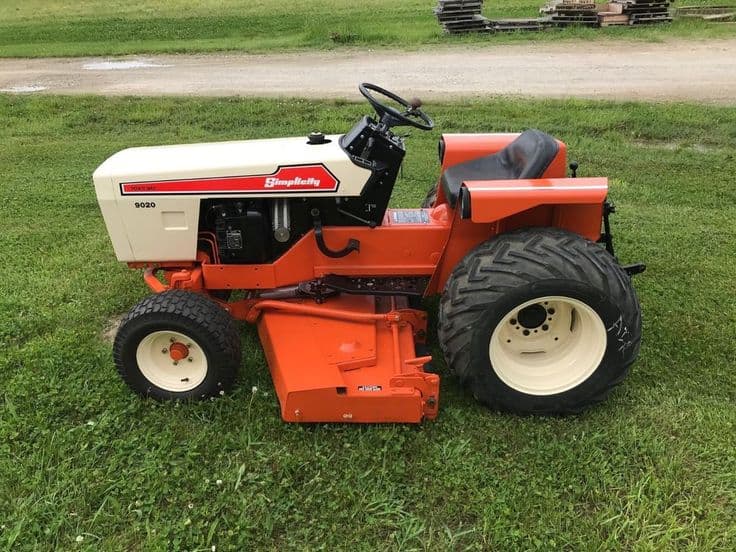

Image Gallery

Simplicity 9020 PowrMax Tractor Simplicity 9020 PowrMax Tractor Simplicity 9020 PowrMax Tractor Simplicity 9020 PowrMax Tractor Simplicity 9020 PowrMax Tractor Simplicity 9020 PowrMax Tractor

Simplicity 9020 PowrMax vs. Similar Tractors

Power Output
Average
Greater than 57% of similar tractors.
Operating Weight
Poor
Greater than 3% of similar tractors.

Technical Specifications

Engine

Manufacturer
Onan
Model
CCKB
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
2
Displacement (ci)
49.8
Bore (in)
3.27
Stroke (in)
2.99
Rated RPM
3600
Power Output (hp)
19.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
82.7
Width (in)
55.9
Height (in)
47.6 (to steering wheel)
Operating Weight (lb)
1,299

Power Take-Off (PTO)

PTO Type
Front and Rear - Independent with electric clutch
PTO Speed 1 (rpm)
2000
PTO Speed 2 (rpm)
2000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
8
Rear Tire Diameter (in)
-
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf
Manufacture - End Year
1980
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
Disc
Hydraulic System Type
-
