Silver King R44

Last Updated: June 2024

Overview

The Silver King R44 is a vintage tractor powered by a Hercules IXB gasoline engine. It delivers 24.5 horsepower at a rated RPM of 1400 and has a displacement of 133 cubic inches. The bore and stroke measurements are 3.25 inches and 4.00 inches, respectively. This tractor is equipped with a simple gear-based transmission offering 4 forward gears and 1 reverse. Cooling is managed by a liquid system, ensuring that the engine maintains optimal operating temperatures under various conditions. Although specific details regarding the chassis, drive type, tires, and hydraulic systems are not provided, the R44's dimensions—97 inches in length, 48 inches in width, and 49 inches in height—indicate a relatively compact tractor that could serve well in small farming operations or for collectors interested in maintaining or showcasing classic agricultural machinery.

Key Specifications

Power Output: 24.5

Transmission: Gear

Fuel Type: Gasoline

Image Gallery

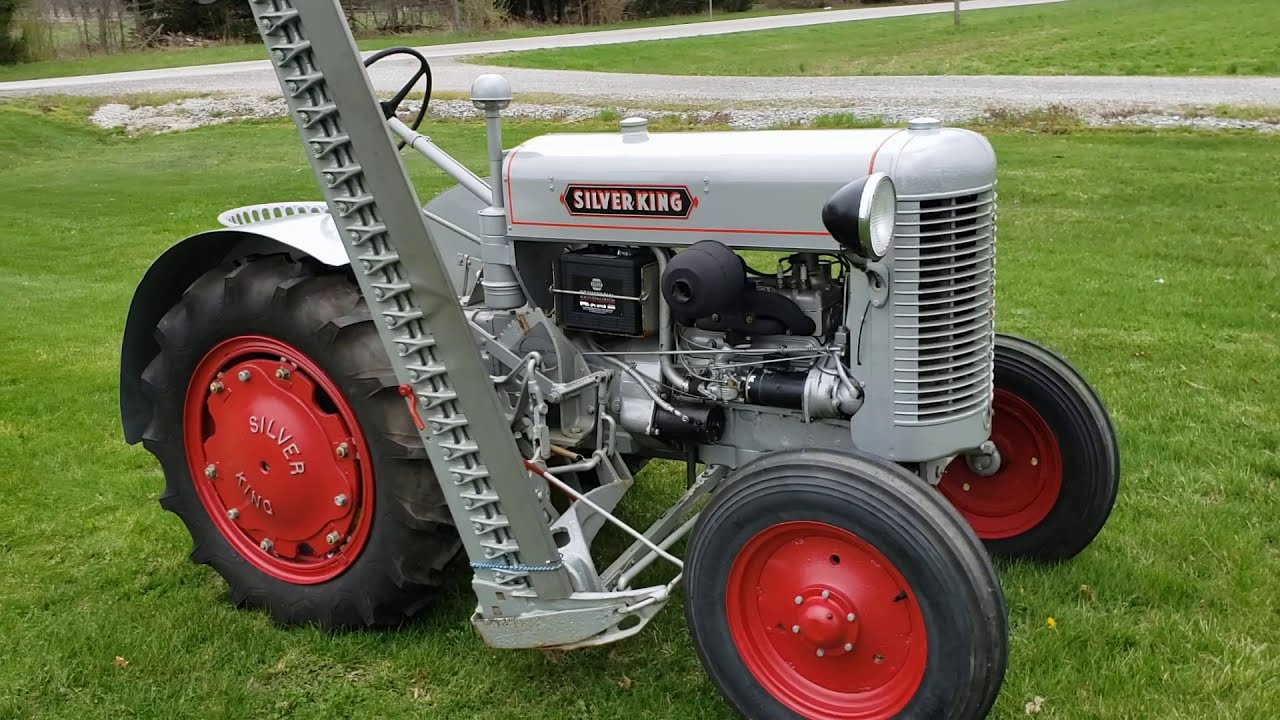

Silver King R44 Tractor

Technical Specifications

Engine

Manufacturer: Hercules
Model: IXB
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 133
Bore (in): 3.25
Stroke (in): 4
Rated RPM: 1400
Power Output (hp): 24.5

Transmission

Type: Gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 97
Width (in): 48
Height (in): 49
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
