Silver King 340

Last Updated: June 2024

Overview

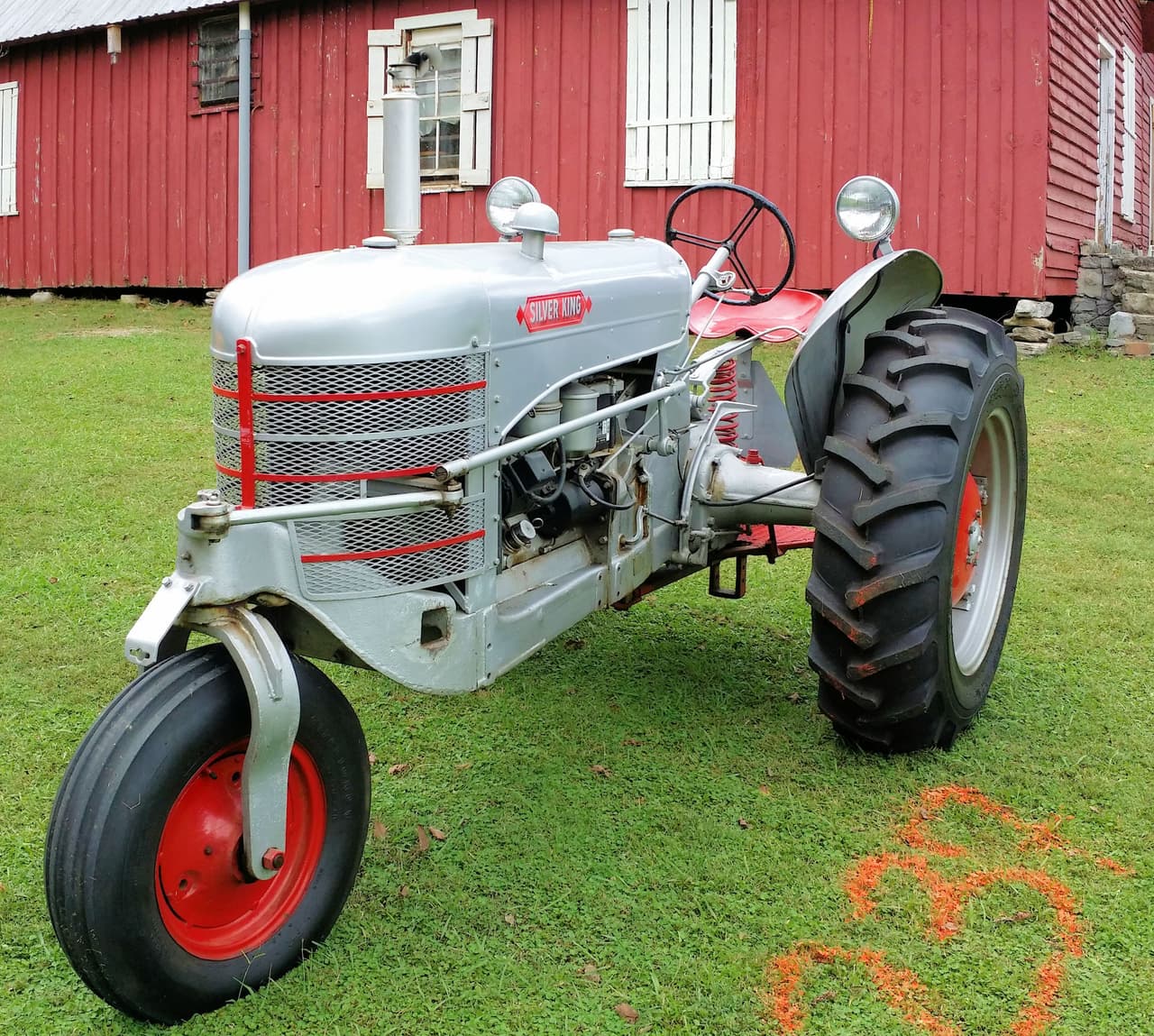

The Silver King 340 is a classic farm/agricultural tractor that was manufactured by Silver King, part of the Fate-Root-Heath company. It features a simple yet robust design with a 3x2 2WD chassis and 4-speed manual gear transmission, including 4 forward gears and 1 reverse. At the heart of the tractor is a 4-cylinder Fate-Root-Heath/Continental model 41 gasoline engine, which is liquid-cooled and rated for 162 cubic inches displacement. Its bore and stroke measurements are 3.4375 inches and 4.375 inches, respectively, operating at a rated RPM of 1800. The steering system is manual, indicative of the era in which Silver King tractors were built, prioritizing straightforward mechanics and durability. The lack of information regarding additional specifications, such as dimensions, weight, hitch system, and hydraulic features, reflects limited historical records that are common with older tractor models.
Show more...

Key Specifications

Category: Agricultural

Transmission: Gear

Drive Type: 2WD

Fuel Type: Gasoline

Technical Specifications

Engine

Manufacturer
Fate-Root-Heath/Continental
Model
41
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
162
Bore (in)
3.4375
Stroke (in)
4.375
Rated RPM
1800
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
3x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
