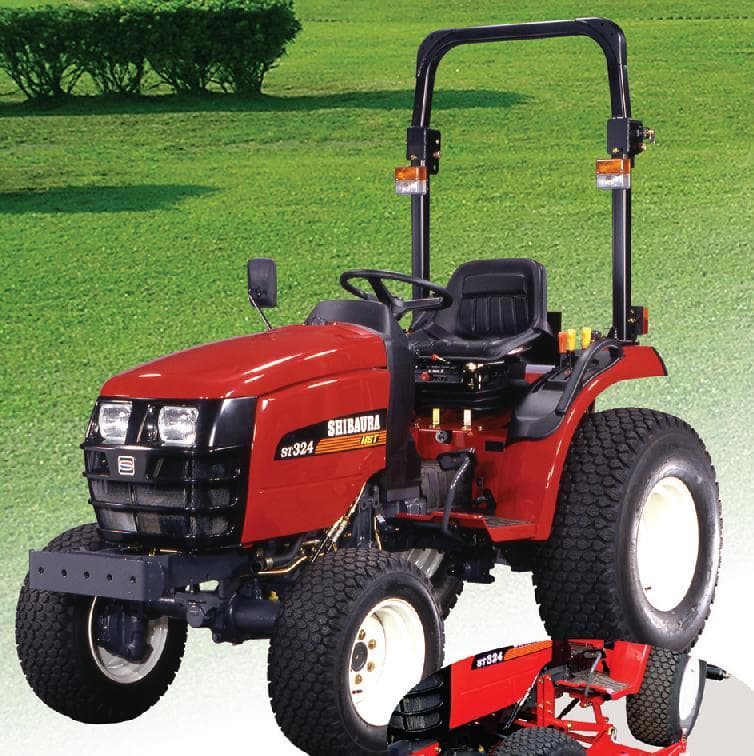

Shibaura ST324

Last Updated: June 2024

Overview

The Shibaura ST324 is a compact utility tractor that's well-suited for a variety of tasks. This model features a 24 horsepower Shibaura S773L diesel engine with a displacement of 69 cubic inches and operates at a rated RPM of 2600. The tractor is cooled by a liquid system with a capacity of 3.7 quarts. With a hydrostatic transmission, the ST324 offers infinite forward and reverse gears allowing for a broad range of speeds. This four-wheel-drive (4WD) tractor has a chassis with four-wheel drive MFWD for better traction and handling which combined with power steering, provides ease of maneuverability. The tractor supports both agricultural and lawn/turf tires, indicating its versatility across different working conditions. The ST324 is built to last with a weight of 1640 pounds and dimensions that measure 107.4 inches in length, 46.8 inches in width, and 90 inches in height with ROPS. Despite its power and size, the model has a relatively tight turning radius thanks to a 55.3-inch wheelbase, which is complementable by a front-axle clearance of 8.8 inches offering good ground clearance for a variety of tasks. However, further details on operator station type and PTO specifics, as well as the hitch's lift capacity, are not provided and remain unknown.
Show more...

Key Specifications

Category: Utility

Power Output: 24

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1640

Fuel Type: Diesel

Shibaura ST324 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Below Average
Greater than 13% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
S773L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
69
Bore (in)
3.03
Stroke (in)
3.23
Rated RPM
2600
Power Output (hp)
24

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
107.4
Width (in)
46.8
Height (in)
90 (ROPS)
Operating Weight (lb)
1640

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
3.7
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural: 450-89 (Front), 9.5-16 (Rear) | Lawn/turf: 20x8.00-10 (Front), 29x12.00-15 (Rear)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
