Shibaura ST318

Last Updated: June 2024

Overview

The Shibaura ST318 is a compact utility tractor, tailored for a variety of tasks around a small farm or estate. It is powered by a Shibaura S753 diesel engine, which delivers 18 horsepower and is liquid-cooled, making it capable of handling moderate tasks without overheating. With a 9-speed gear transmission (9 forward and 3 reverse), the ST318 offers versatility in speed selection for different jobs. The chassis is designed as a 4x4 MFWD 4WD, enabling better traction in challenging terrain. Power steering enhances maneuverability and handling. Details such as tire sizes and specific weights are not provided, although with a wheelbase of 55.3 inches, it shows a profile of balance and stability. The tractor has an electric starter system and an open center type hydraulic system, but the specifics of the hitch lift capacity and PTO speeds are not provided.

Key Specifications

Category: Utility

Power Output: 18

Transmission: Gear (9-speed gear)

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: Unknown (Different weights provided for Gear and Hydro models, but not specified which one corresponds to ST318)

Fuel Type: Diesel

Image Gallery

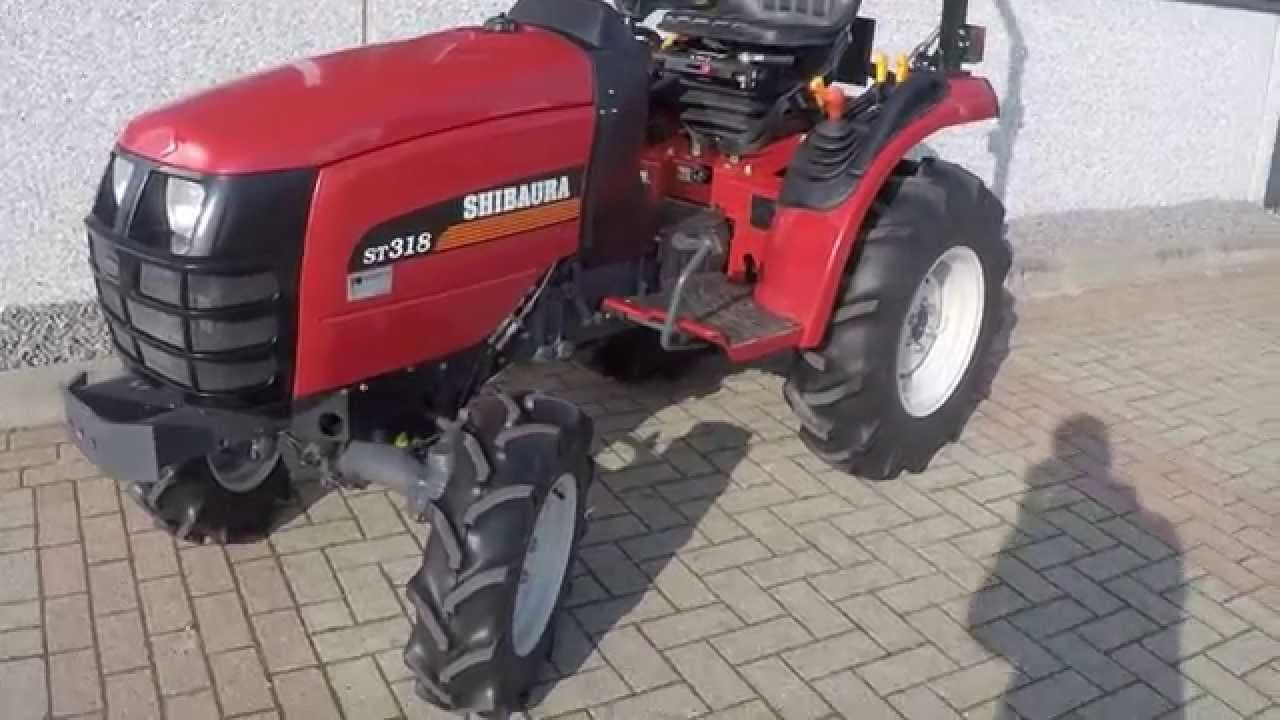

Shibaura ST318 Tractor

Shibaura ST318 vs. Similar Tractors

Power Output

Poor

Greater than 7% of similar tractors.

Operating Weight

Poor

Greater than 0% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: S753 diesel
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 58.2
Bore (in): 2.95
Stroke (in): 2.83
Rated RPM: 2600
Power Output (hp): 18

Transmission

Type: Gear (9-speed gear)
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 107.4
Width (in): Unknown (Different widths provided for Gear and Hydro models, but not specified which one corresponds to ST318)
Height (in): Unknown (Different heights provided for Gear and Hydro models, but not specified which one corresponds to ST318)
Operating Weight (lb): Unknown (Different weights provided for Gear and Hydro models, but not specified which one corresponds to ST318)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD (Mechanical Front Wheel Drive)
Steering Type: Power
Coolant Capacity (qts): 3.7
Front Tire Diameter (in): Unknown (Assuming standard size for compact 4WD tractors, but data not provided)
Front Tire Width (in): Unknown (Assuming standard size for compact 4WD tractors, but data not provided)
Rear Tire Diameter (in): Unknown (Assuming standard size for compact 4WD tractors, but data not provided)
Rear Tire Width (in): Unknown (Assuming standard size for compact 4WD tractors, but data not provided)
Front/Rear Rim Diameter (in): -
Tire Type: Unknown (Data provided for Ag and Lawn/Turf, but not specified which is equipped)
Manufacture - End Year: -
Hitch Type: Unknown (Rear Type I provided, but no explicit "Hitch Type")
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Unknown (ROPS indicated, but not whether it's an open station or cab)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
