Shibaura SP2100

Last Updated: June 2024

Overview

The Shibaura SP2100 is a utility tractor known for its robustness and versatility. Powered by a Shibaura S753 20.7 horsepower engine, it features a liquid-cooled diesel engine, 3-cylinder, and a displacement of 58.2 cubic inches. The synchromesh transmission facilitates smooth gear changes with 6 forward and 2 reverse gears. It operates at a rated RPM of 2600, supported by an electric starter with a 12-volt system. The agricultural standard tire fitment is front: 4.00-12 and rear: 9.5-20, with a wheelbase of 52.4 inches. Its modest size, with a length of 98.7 inches, a width of 41.1 inches, and a height of 70.1 inches, contributes to its agility, making it suitable for a variety of tasks around the farm. The tractor weighs 1190 lbs and has a ground clearance of 13.6 inches, providing ample underbody space for uneven terrain.

Key Specifications

Category: Utility

Power Output: 20.7

Transmission: Synchromesh

Operating Weight: 1190

Fuel Type: Diesel

Image Gallery

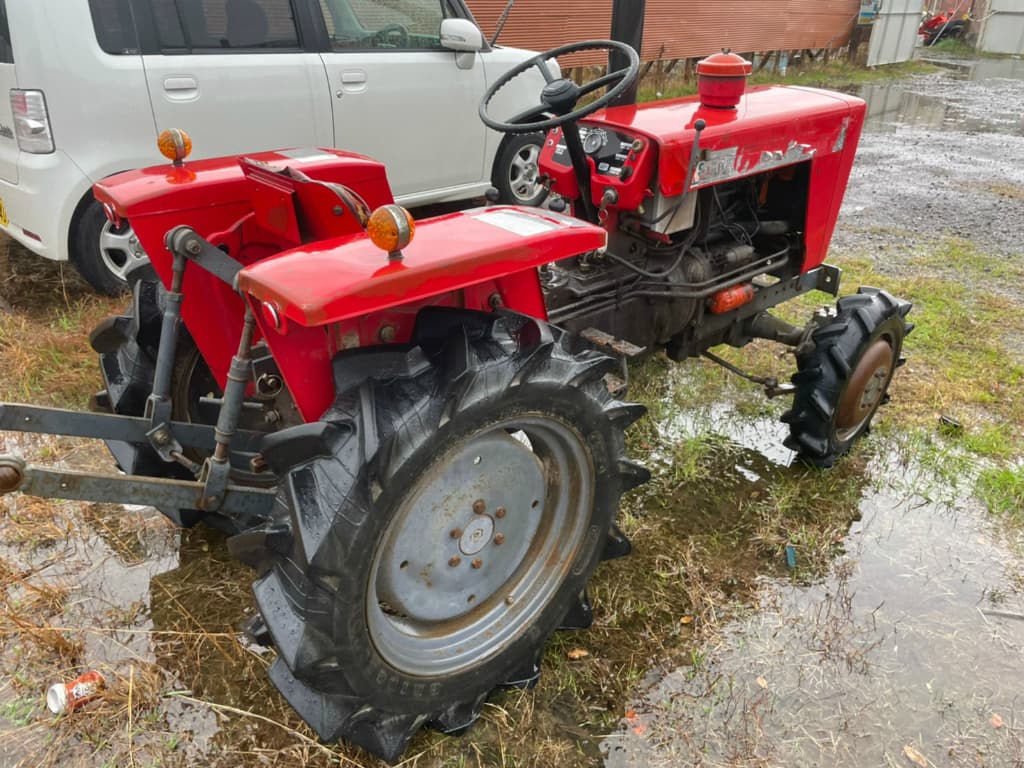

Shibaura SP2100 Tractor

Shibaura SP2100 vs. Similar Tractors

Power Output

Below Average

Greater than 10% of similar tractors.

Operating Weight

Poor

Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: S753
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 58.2
Bore (in): 2.95
Stroke (in): 2.83
Rated RPM: 2600
Power Output (hp): 20.7

Transmission

Type: Synchromesh
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 98.7
Width (in): 41.1
Height (in): 70.1
Operating Weight (lb): 1190

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: JIS1
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
