Shibaura SF1040T

Last Updated: June 2024

Overview

The Shibaura SF1040T is a 4WD utility tractor from Shibaura, a Japanese manufacturer. It's designed to handle a variety of tasks in different agricultural settings. The tractor is powered by a 4.6 L Shibaura LER1104T engine, which is a four-cylinder, liquid-cooled, turbocharged diesel unit producing 105 horsepower at 2200 RPM. This robust power plant, combined with a constant mesh transmission offering 16 forward and 4 reverse gears, allows the tractor to tackle a wide range of jobs. The tractor is equipped with hydrostatic power steering, mechanical wet disc brakes, and a choice of an open operator station or a two-post ROPS, making it suitable for diverse farm operations and enhancing operator comfort and safety. Its substantial weight of 7915 lbs and standard agricultural tires (front: 12.4-24, rear: 18.4-34) provide stability and traction.
Show more...

Key Specifications

Category: Utility

Power Output: 105

Transmission: Constant mesh

Drive Type: 4WD

Operating Weight: 7915

Fuel Type: Diesel

Image Gallery

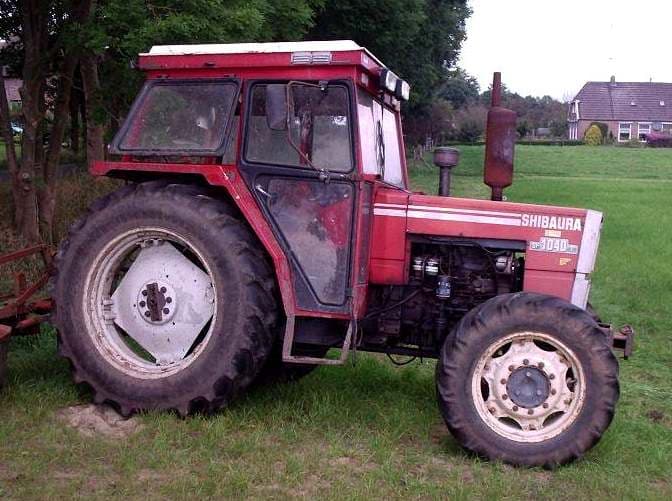

Shibaura SF1040T Tractor Shibaura SF1040T Tractor Shibaura SF1040T Tractor Shibaura SF1040T Tractor Shibaura SF1040T Tractor Shibaura SF1040T Tractor

Shibaura SF1040T vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Average
Greater than 56% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
LER1104T
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
278.3
Bore (in)
4.331
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
105

Transmission

Type
Constant mesh
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
161
Width (in)
74
Height (in)
108
Operating Weight (lb)
7915

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
12.4
Rear Tire Diameter (in)
34
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station or two-post ROPS
Starter Type
Electric
Brake Type
Mechanical wet disc
Hydraulic System Type
Open center
