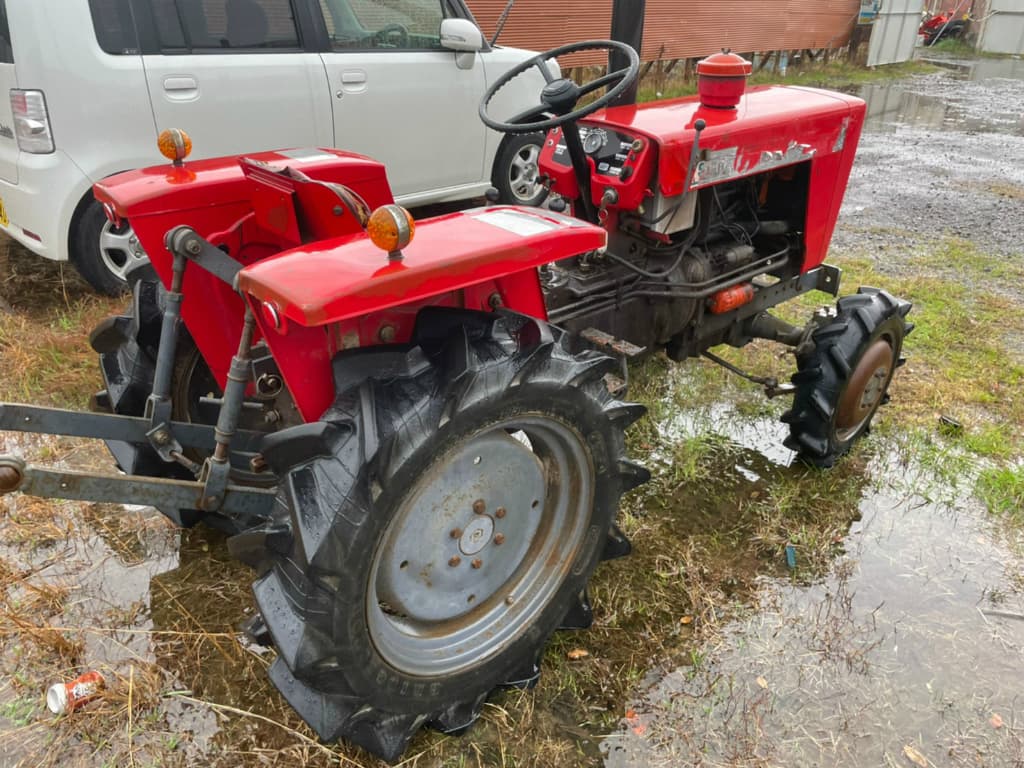

Shibaura SE8300

Last Updated: June 2024

Overview

The Shibaura SE8300 is a utility tractor, equipped with a liquid-cooled diesel engine, the Shibaura LEA1104. With a power output of 83 hp and a sturdy build, this tractor offers robust performance for various farming tasks. It operates between 1500-2200 RPM, with an optimal power at 2200 RPM, and provides a significant torque of 202.8 lb-ft at 1500 RPM. This model has a constant mesh transmission with a clutch system that allows for 16 forward gears and 4 reverse gears, facilitating diverse field and hauling operations. The tractor's dimensions, 153.9 inches in length, 74.4 inches in width, and 107 inches in height, along with a substantial operating weight of 7260 lbs, suggest a sizeable and stable workhorse capable of tackling significant agricultural activities. The Shibaura SE8300 runs on dry disc clutch and has a ground clearance of 16.7 inches, offering good maneuverability over uneven terrain.
Show more...

Key Specifications

Category: Utility

Power Output: 83

Transmission: Constant mesh

Operating Weight: 7260

Fuel Type: Diesel

Shibaura SE8300 vs. Similar Tractors

Power Output
Above Average
Greater than 72% of similar tractors.
Operating Weight
Average
Greater than 53% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
LEA1104
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Compression
Cylinders
4
Displacement (ci)
278.3
Bore (in)
4.33
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
83

Transmission

Type
Constant mesh
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
153.9
Width (in)
74.4
Height (in)
107
Operating Weight (lb)
7260

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
30
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
