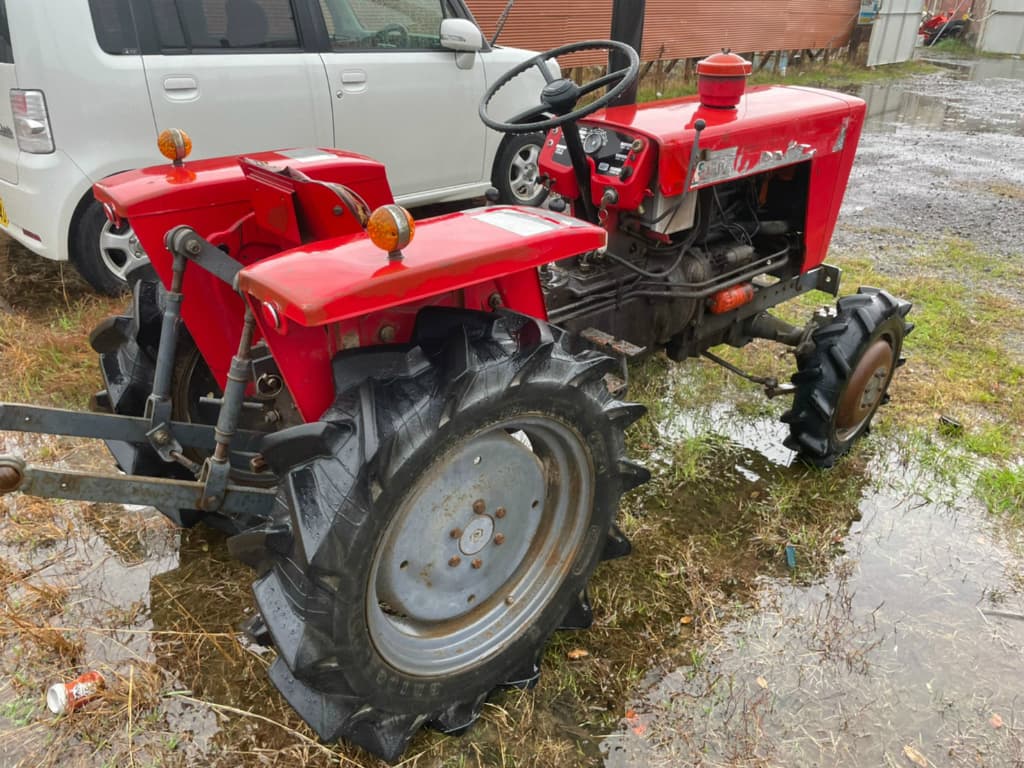

Shibaura SE4000

Last Updated: June 2024

Overview

The Shibaura SE4000 is a compact utility tractor that embodies a blend of power and agility, equipped with a Shibaura LEP854A engine delivering a reliable 40 horsepower and operating at a rated rpm of 2500. With liquid cooling and a natural aspiration system, this diesel-fueled engine utilizes 4 cylinders to produce a torque of 89.7 lb-ft at 2000 rpm. The tractor's 4x2 2WD chassis provides stability and maneuverability in varied working conditions. The 12 forward and 4 reverse gears in the transmission permit a range of speeds and precision in task execution. The tractor boasts a length of 131.5 inches and stands 61.8 inches tall at the steering wheel, with an operational weight of 3075 lbs, suggesting its capability of performing various tasks without being overly cumbersome. Open station type denotes that the operator's seat and controls are exposed to the elements, a common feature for tractors in this category designed for utility and ease of access, rather than comfort. The SE4000 comes with an open-center type hydraulic system, establishing a straightforward and effective mechanism for using various implements and attachments.
Show more...

Key Specifications

Category: Utility

Power Output: 40

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3075

Fuel Type: Diesel

Shibaura SE4000 vs. Similar Tractors

Power Output
Average
Greater than 37% of similar tractors.
Operating Weight
Below Average
Greater than 26% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
LEP854A
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
4
Displacement (ci)
130.2
Bore (in)
3.35
Stroke (in)
3.7
Rated RPM
2500
Power Output (hp)
40

Transmission

Type
Gear
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
131.5
Width (in)
59.8
Height (in)
61.8 (up to steering wheel)
Operating Weight (lb)
3075

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
6
Rear Tire Diameter (in)
28
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Open center
