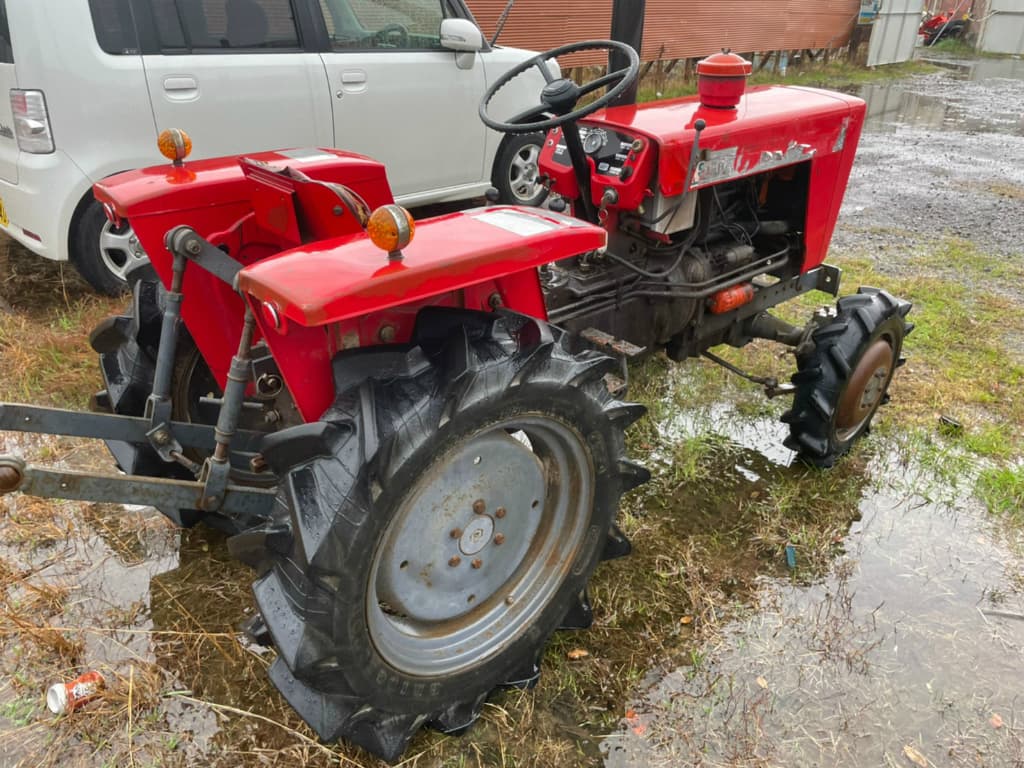

Shibaura SE1340

Last Updated: June 2024

Overview

The Shibaura SE1340 is a sub-compact utility tractor, prized for its versatility and reliability in various small-scale agricultural tasks. It features a straightforward 4x2 chassis (two-wheel drive) and manual steering, making it a no-frills and easy-to-maintain option for farmers. Equipped with a Shibaura LEK 752C diesel engine, this model prioritizes efficiency, boasting 13 horsepower at 2600 RPM, while the two cylinders and liquid-cooled design ensure optimal performance in strenuous conditions. The gear transmission provides a substantial range of 10 forward and 2 reverse speeds, allowing for precise speed control. With a modest weight of 1122 pounds, the tractor maintains a small footprint, making it suitable for operations where space is limited. The front and rear agricultural tires measure 5.00x12 and 7.00x16 inches, respectively, which contribute to traction and maneuverability on varied terrains. The open operator station reflects the tractor's service in simpler, less demanding environments, affording operators direct access to the machine's controls and immediate surroundings.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 13

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1122

Fuel Type: Diesel

Shibaura SE1340 vs. Similar Tractors

Power Output
Poor
Greater than 1% of similar tractors.
Operating Weight
Poor
Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
LEK 752C
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
2
Displacement (ci)
43.1
Bore (in)
2.95
Stroke (in)
3.15
Rated RPM
2600
Power Output (hp)
13

Transmission

Type
Gear
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
95
Width (in)
42.1
Height (in)
49 (steering wheel)
Operating Weight (lb)
1122

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
12
Front Tire Width (in)
5
Rear Tire Diameter (in)
16
Rear Tire Width (in)
7
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
