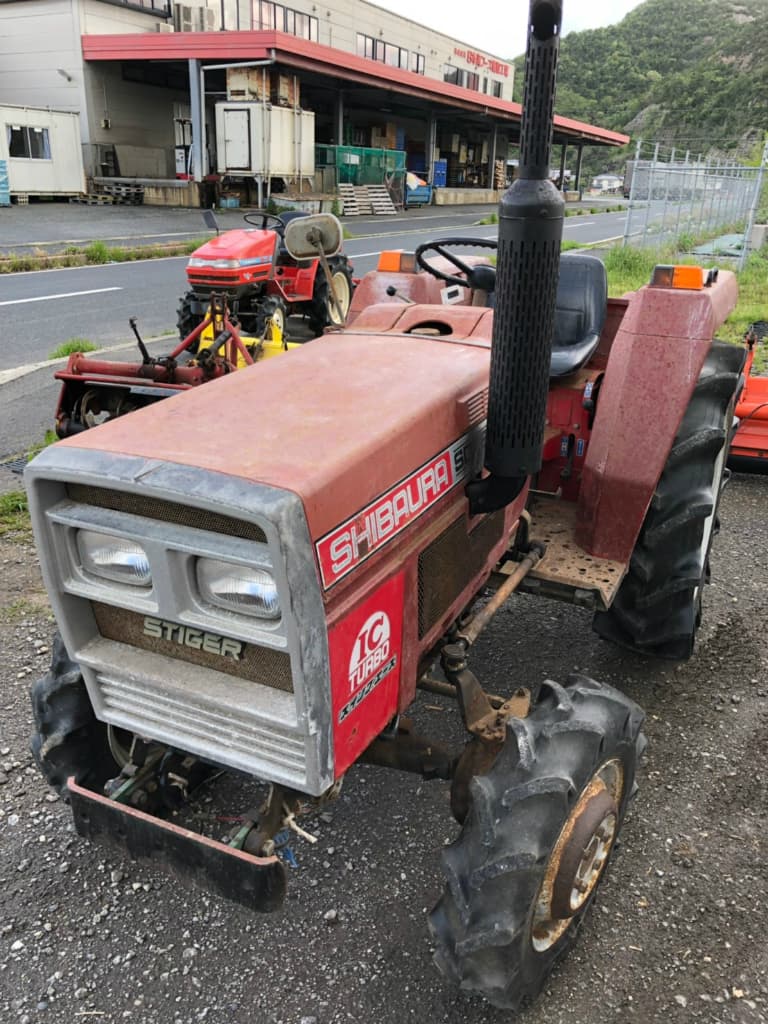

Shibaura SD2843

Last Updated: June 2024

Overview

The Shibaura SD2843 is a utility tractor equipped with a Shibaura H843 turbocharged diesel engine. This 3-cylinder engine provides 27.6 horsepower and has a liquid cooling system to maintain optimal operating temperatures. With a displacement of 85.2 cubic inches and a bore and stroke of 3.31 inches each, it operates at a rated RPM of 2500. This tractor has a gearbox offering 12 forward and 4 reverse gears, suitable for a range of tasks. The SD2843 is relatively compact, with a total length of 113 inches, a width of 52 inches, and a height of 72 inches, and it has an operating weight of 2662 pounds. While specifics such as chassis, drive type, and steering type are not provided in the data, the information given suggests a robust and versatile machine.
Show more...

Key Specifications

Category: Utility

Power Output: 27.6

Operating Weight: 2662

Fuel Type: Diesel

Shibaura SD2843 vs. Similar Tractors

Power Output
Below Average
Greater than 22% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
H843
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
85.2
Bore (in)
3.31
Stroke (in)
3.31
Rated RPM
2500
Power Output (hp)
27.6

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
113
Width (in)
52
Height (in)
72
Operating Weight (lb)
2662

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
