Shibaura SD2803

Last Updated: September 2024

Overview

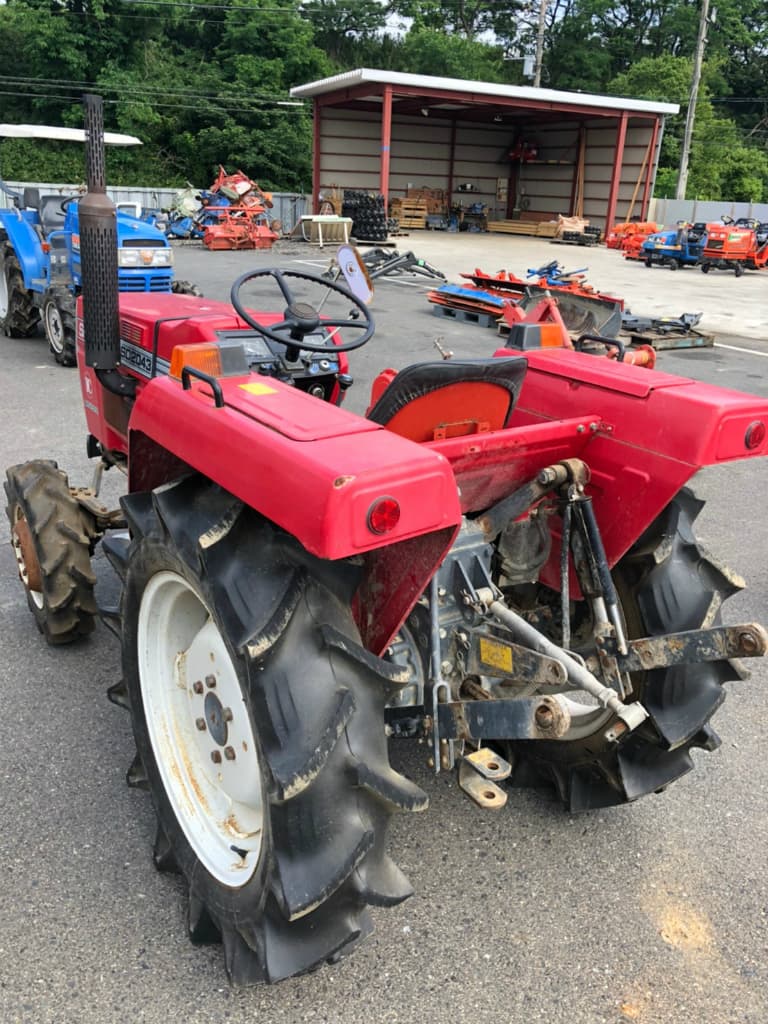

The Shibaura SD2803 is a utility tractor designed for various farm tasks. It's powered by a Shibaura H843 engine, which is a 3-cylinder diesel engine with turbocharging. This engine has a displacement of 85.2 ci, which is below average compared to other tractors. It runs at 2500 rpm, which is above average, and produces 27.6 hp, which is on the lower end of the power range for tractors.

This tractor has a 12-speed forward and 4-speed reverse transmission, giving the operator good control over speed and power. The SD2803 is compact, measuring 113 inches long, 52 inches wide, and 72 inches tall. It weighs 2433 lb, making it a lighter tractor that's easy to maneuver. The tractor's size and weight make it suitable for working in tight spaces or on smaller farms. Shibaura, a Japanese manufacturer, is known for making reliable, compact tractors for various agricultural needs.
Show more...

Key Specifications

Category: Utility

Power Output: 28 hp (20.6 kW)

Operating Weight: 2433 lb (1104 kg)

Fuel Type: Diesel

Shibaura SD2803 vs. Similar Tractors

Power Output

The Power Output for the Shibaura SD2803 is Below Average. It is greater than 22% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Shibaura SD2803 is Below Average. It is greater than 17% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Shibaura SD2803 is Below Average. It is greater than 16% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Shibaura SD2803 is Average. It is greater than 61% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Shibaura
Model
H843
Cooling Type
Liquid
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement
85 ci (1.4 L)
Bore
3.31 in (84.1 mm)
Stroke
3.31 in (84.1 mm)
Rated RPM
2500
Power Output
28 hp (20.6 kW)

Transmission

Forward Gears
12
Reverse Gears
4
