Shibaura SD2640

Last Updated: June 2024

Overview

The Shibaura SD2640 is a compact utility tractor known for its efficient 26 hp Shibaura LEM853 diesel engine and its 4-wheel drive chassis. This tractor is equipped with a 1.4 L engine having a displacement of 87.2 cubic inches and a bore and stroke of 3.35x3.31 inches. The liquid-cooled engine supports demanding tasks and promotes durability. It has a manual transmission with an impressive 12 forward and 4 reverse gears, providing versatility in a variety of work situations. The tractor's overall length is 119 inches, width is 56 inches, and height is 73 inches, with an operating weight of 2904 lbs. Its balanced proportions and reliable engine make it suitable for a wide range of agricultural tasks.

Key Specifications

Category: Utility

Power Output: 26

Transmission: Manual

Drive Type: 4WD

Operating Weight: 2904

Fuel Type: Diesel

Image Gallery

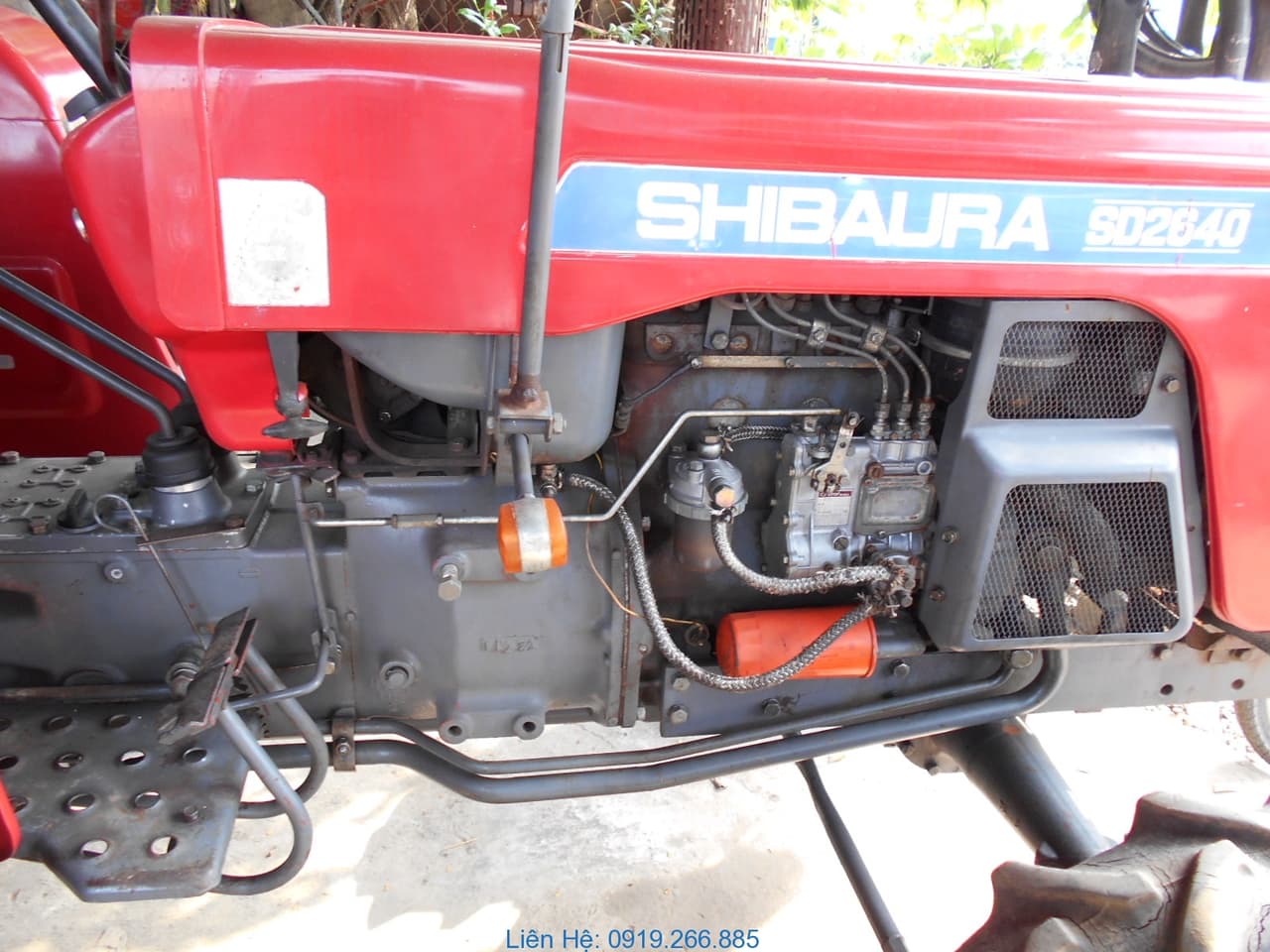

Shibaura SD2640 Tractor

Shibaura SD2640 vs. Similar Tractors

Power Output

Below Average

Greater than 20% of similar tractors.

Operating Weight

Below Average

Greater than 24% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: LEM853
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 87.2
Bore (in): 3.35
Stroke (in): 3.31
Rated RPM: -
Power Output (hp): 26

Transmission

Type: Manual
Forward Gears: 12
Reverse Gears: 4
Total Gears: 16

Dimensions

Length (in): 119
Width (in): 56
Height (in): 73
Operating Weight (lb): 2904

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
