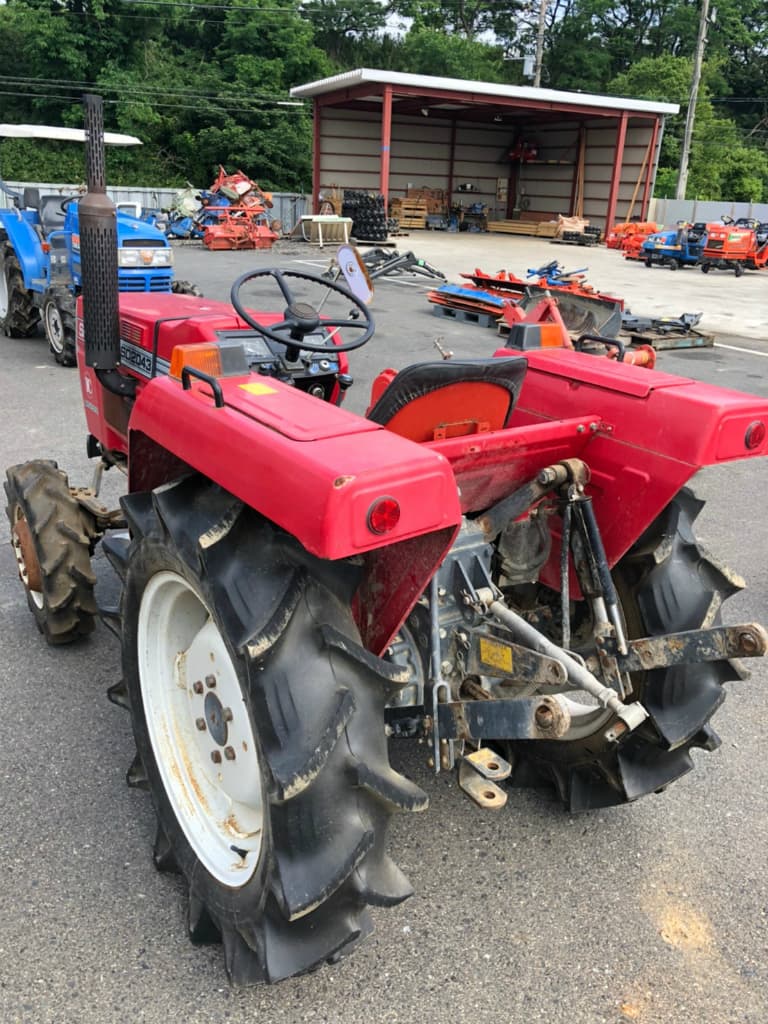

Shibaura SD2403

Last Updated: June 2024

Overview

The Shibaura SD2403 is a compact utility tractor that offers a desirable combination of power and maneuverability for a variety of tasks frequently performed by hobby farmers and small-scale operators. As a 2WD tractor with a 4x2 chassis configuration, it primarily functions well on flat terrain and yard work where massive traction and four-wheel drive are not critical. The tractor is powered by a Shibaura LEM853 3-cylinder diesel engine, which provides reliable performance with a 24 horsepower output. With a liquid-cooled system, the SD2403 ensures efficient thermal regulation during operation. The tractor's measurements include a length of 121 inches, a width of 56 inches, and a height of 74 inches, with an operating weight of 2845 pounds, indicating a solid presence on the field without being cumbersome. Details on transmission, PTO, and hydraulic features remain unknown, but these specs would impact the effectiveness of the tractor for various tasks and attachment compatibility.
Show more...

Key Specifications

Category: Utility

Power Output: 24

Drive Type: 2WD

Operating Weight: 2845

Fuel Type: Diesel

Shibaura SD2403 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Below Average
Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
LEM853
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated (assumed as not specified)
Cylinders
3
Displacement (ci)
87.2
Bore (in)
3.35
Stroke (in)
3.31
Rated RPM
-
Power Output (hp)
24

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
121
Width (in)
56
Height (in)
74
Operating Weight (lb)
2845

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
