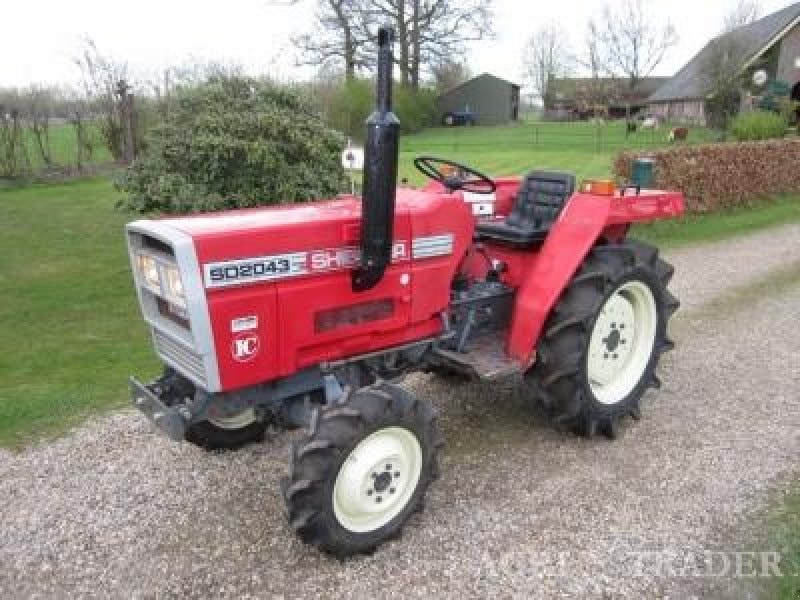

Shibaura SD2043

Last Updated: June 2024

Overview

The Shibaura SD2043 is a compact utility tractor designed with a 4x4 MFWD 4WD chassis that endows it with enhanced maneuverability and capabilities in varied terrain conditions. At the heart of this tractor is a Shibaura diesel engine with a displacement of 85.2 cubic inches and a bore/stroke of 3.31 inches. Cooling is managed by a liquid-cooled system, ensuring that the 20 horsepower engine operates within ideal temperature ranges. The tractor measures 113 inches in length, 49 inches in width, and stands 71 inches tall, with an operating weight of 2468 lbs. While many specifications such as the steering type, transmission details, tire sizes, and hitch system remain unknown, this tractor appears to be tailored for those needing a robust and versatile machine for various compact utility tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 20

Drive Type: 4WD

Operating Weight: 2468

Fuel Type: Diesel

Shibaura SD2043 vs. Similar Tractors

Power Output
Poor
Greater than 10% of similar tractors.
Operating Weight
Below Average
Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
85.2
Bore (in)
3.31
Stroke (in)
3.31
Rated RPM
-
Power Output (hp)
20

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
113
Width (in)
49
Height (in)
71
Operating Weight (lb)
2468

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
