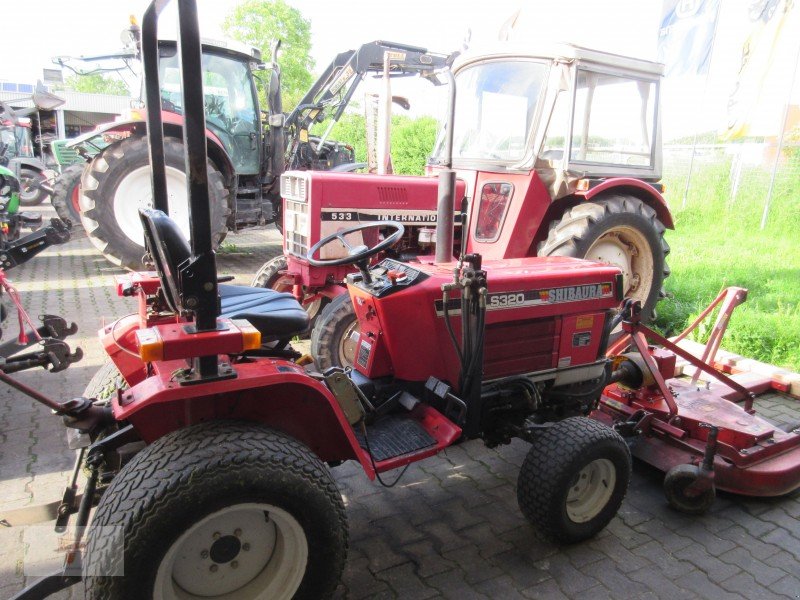

Shibaura S320

Last Updated: June 2024

Overview

The Shibaura S320 is characterized by its Shibaura S753 engine that delivers a moderate 20 horsepower and a displacement of 58.2 cubic inches. A liquid-cooled diesel engine, the S320's engine configuration is a 3-cylinder design, ensuring efficiency and durability. This tractor seems to cater to those who require a machine that's nimble with a relatively small footprint, evidenced by its dimensions and weight, accommodating a variety of agricultural tasks. The hydrostatic transmission with 9 forward and 3 reverse gears provides versatility in speed and maneuverability. With different tire options available, the tractor appears to be adaptable for various ground conditions and duties. Overall, the S320 seems to be a compact tractor (with missing data on its direct applications) that promises consistency and longevity for a range of tasks in a mid-capacity range.
Show more...

Key Specifications

Power Output: 20

Transmission: hydrostatic

Operating Weight: 1290 (2WD) / 1378 (4WD)

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
Shibaura
Model
S753
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
3
Displacement (ci)
58.2
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
20

Transmission

Type
hydrostatic
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
106.3
Width (in)
40.9
Height (in)
77.4
Operating Weight (lb)
1290 (2WD) / 1378 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (4.00-12 does not provide diameter)
Front Tire Width (in)
4.00 (assuming the tire nomenclature follows the format width-diameter)
Rear Tire Diameter (in)
Unknown (9.5-16 does not provide diameter)
Rear Tire Width (in)
9.5 (assuming the tire nomenclature follows the format width-diameter)
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
