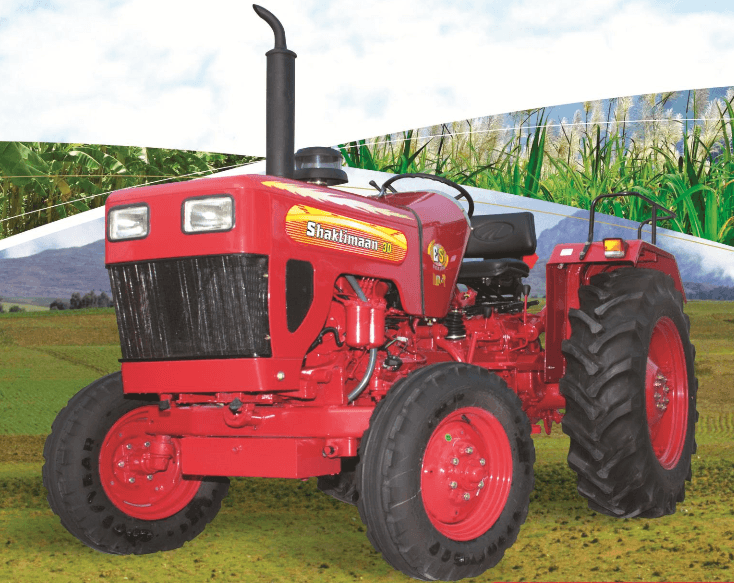

Shaktimaan 30

Last Updated: June 2024

Overview

The Shaktimaan 30 tractor, equipped with a 30 hp MDI 1785 diesel engine, offers a dependable power source for a variety of agricultural tasks. With its 3-cylinder, liquid-cooled engine rated at 2300 RPM and displacement of 115.5 cubic inches, it is designed to provide efficient operation and durability. An 8-speed sliding mesh transmission comprising 8 forward gears and 2 reverse gears facilitates versatile maneuvering and handling in the field. The tractor's steering mechanism is mechanical, ensuring straightforward control. It rides on a wheelbase of 72.4 inches, ensuring stable operation. The tractor's dimensions, which include a length of 110.2 inches, a width of 66.5 inches, and a height of 85.6 inches, are well-proportioned for balance and ease of movement around the farm. Further specifications, such as a solid front tire of size 6.00x16 and a robust rear tire of 12.4x28, support effective fieldwork. The operating weight of the tractor is 3,847 pounds, indicating a sturdy and reliable structure for varied tasks. While certain capabilities such as hitch information or PTO specifics may vary among models, the Shaktimaan 30 stands out as a practical tractor for small to medium-scale farming operations.
Show more...

Key Specifications

Power Output: 30

Transmission: Sliding Mesh

Operating Weight: 3,847

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MDI (part of Mahindra)
Model
MDI 1785
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
115.5
Bore (in)
3.5
Stroke (in)
4
Rated RPM
2300
Power Output (hp)
30

Transmission

Type
Sliding Mesh
Forward Gears
8
Reverse Gears
2
Total Gears
10

Dimensions

Length (in)
110.2
Width (in)
66.5
Height (in)
85.6
Operating Weight (lb)
3,847

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Mechanical
Coolant Capacity (qts)
5.8
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
